TE Connectivity AMP Connectors 53240-2
MPN53240-2
Active

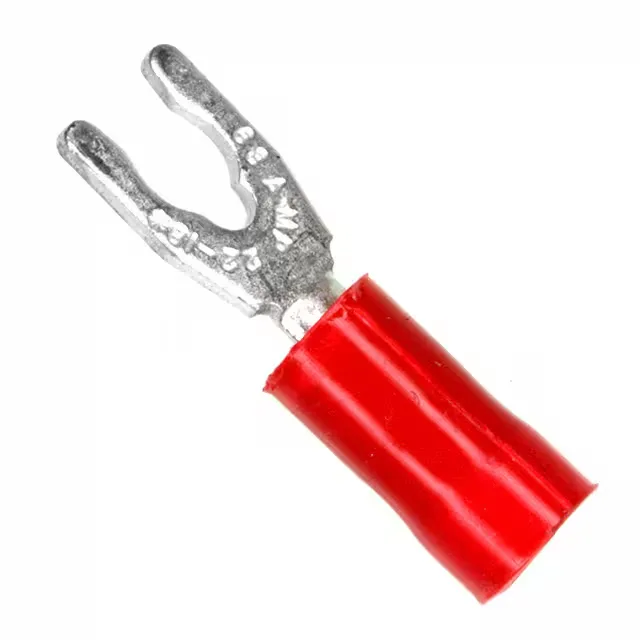

CONN SPADE TERM 16-22AWG #6 RED
$0.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Spring, Snap |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Brass |
| Width - outer edges | 0.234\" (5.94mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.811\" (20.60mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.140\" (3.56mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
