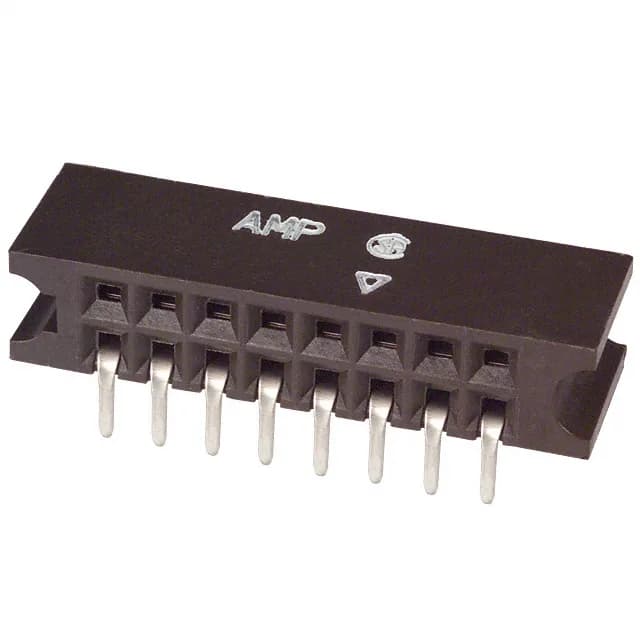

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 532956-2, 16 positions, dual row, 0.100" (2.54 mm) pitch, gold mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 532956-2: The through-hole right-angle mounting and solder termination fix the receptacle to the board edge.
The 0.238" (6.05 mm) insulation height and 0.115" (2.92 mm) post length set the board stand-off and solder tail clearance. All 16 positions are loaded; the guide pin ears aid alignment during mating.
