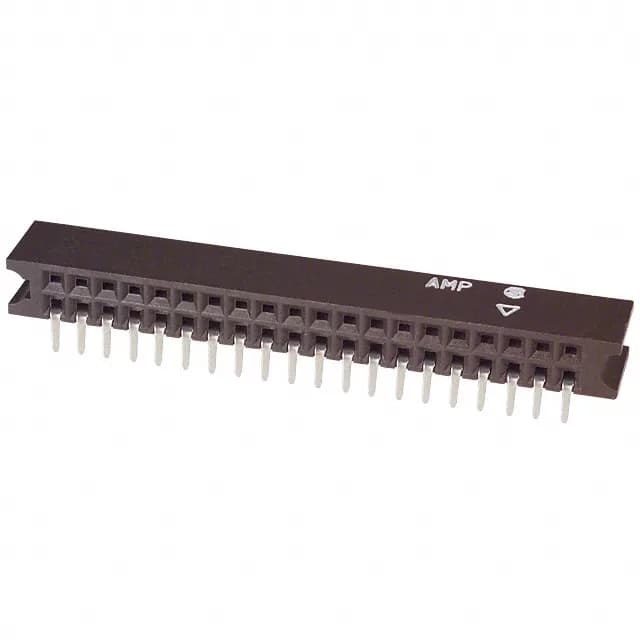

TE Connectivity AMPMODU Mod II receptacle, order code 532956-7, 40 positions, dual row, 2.54 mm pitch, through-hole right-angle, solder termination, gold mating contacts.
TE AMPMODU Mod II 532956-7 Receptacle, 40 Pos 2.54mm
MPN532956-7
Active
TE Connectivity AMPMODU Mod II receptacle, order code 532956-7, 40 positions, dual row, 2.54 mm pitch, through-hole right-angle, solder termination, gold mating contacts.
$8.4845Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 532956-7's listed style and series?
The connector is listed as Style Board to Board and belongs to the AMPMODU Mod II series.
What compliance documentation is available for 532956-7?
The part is listed as a TE Connectivity product; RoHS and material compliance details are available in the product drawing and datasheet.
