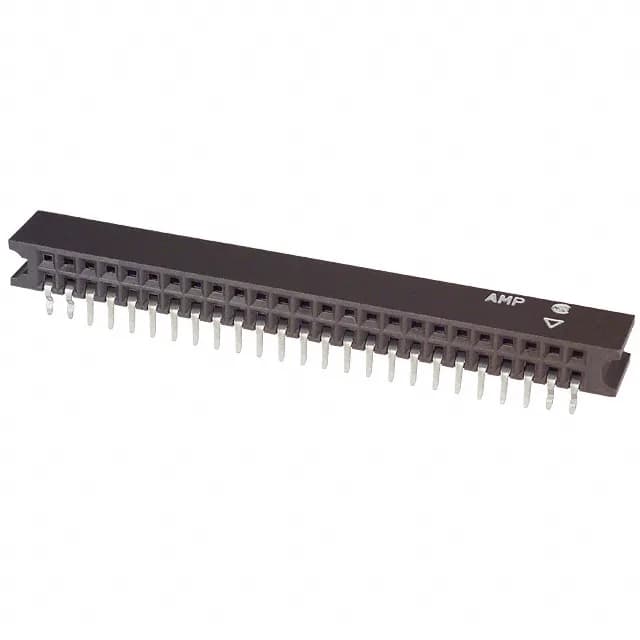

TE Connectivity AMPMODU Mod II receptacle, 534204-1, 50 positions, dual-row 0.100" (2.54 mm) pitch, gold mating finish, right-angle through-hole, kinked-pin solder termination, board-to-board style.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Kinked Pin, Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 534204-1: Kinked-pin solder tails (0.115" post length) provide mechanical retention during wave soldering and help hold the connector square to the board during assembly.
The female socket contacts accept a 0.025" square pin, the standard AMPMODU interface. Termination is through-hole solder with kinked pins — no crimp tooling required. The tin-lead post finish (50.0 µinch) is a legacy solder alloy; confirm RoHS compliance for new designs.
The 534203-1 is a direct sibling in the AMPMODU Mod II series — same pitch, row spacing, and termination style. The primary difference is position count: 534204-1 is 50 positions; 534203-1 is a different count. Confirm the BOM position count before substituting.
The post finish is tin-lead (50.0 µinch), which may not meet RoHS requirements for lead content. Verify compliance with your application's regulatory standard before ordering for new designs.
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
