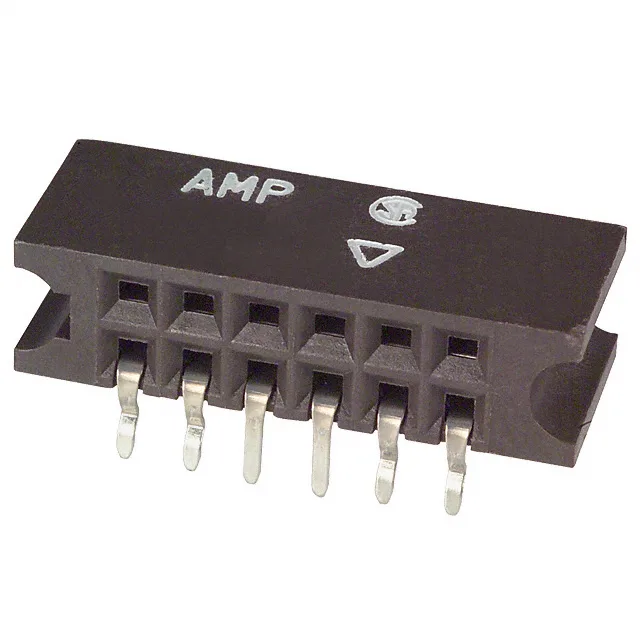

TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 534204-2, 12 positions, dual row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle, kinked pin solder termination.
TE 534204-2 AMPMODU Mod II Receptacle, 12 Pos, 2.54mm
MPN534204-2
Active
TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 534204-2, 12 positions, dual row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle, kinked pin solder termination.
$3.5830Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Kinked Pin, Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does TE provide for the 534204-2?
TE Connectivity AMP Connectors provides standard RoHS and REACH compliance documentation for the 534204-2; specific UL or IEC ratings are not listed in the available product data.
