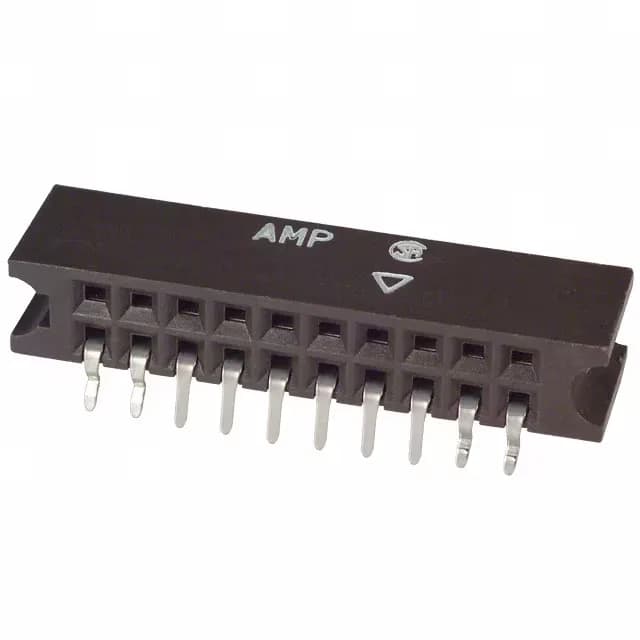

TE Connectivity AMPMODU Mod II receptacle, order code 534204-9, 20 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, tin-lead post finish, through-hole right-angle, kinked pin solder termination, tube package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Kinked Pin, Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 534204-9 is the 20-position dual-row member of TE's AMPMODU Mod II board-to-board receptacle line, mating with standard 0.100" pitch square-pin headers. Gold-plated mating contacts rated for repeated cycles, through-hole right-angle mounting with kinked pins for solder retention, and a push-pull fastening system with guide pin ears for alignment.
The mating finish is gold.
