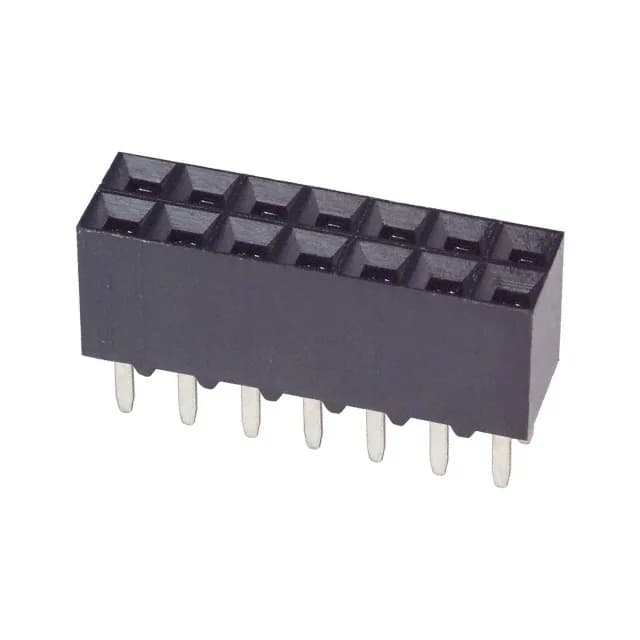

TE Connectivity AMPMODU Mod IV, 534998-7, Female Socket Receptacle, 14 positions, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder, gold mating finish, 2 A per contact, -65°C to 125°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0.100" pitch and 0.100" row spacing define the board footprint: a 14-position dual-row layout, all positions loaded. Gold-on-mating, tin-lead-on-post contact finish (150.0 µin on the post) balances corrosion resistance at the interface with solderability at the board. The phosphor bronze contact material handles repeated insertion without losing spring force.
The contact post finish is tin-lead, which is not RoHS-compliant. Verify your application's exemption requirements.
