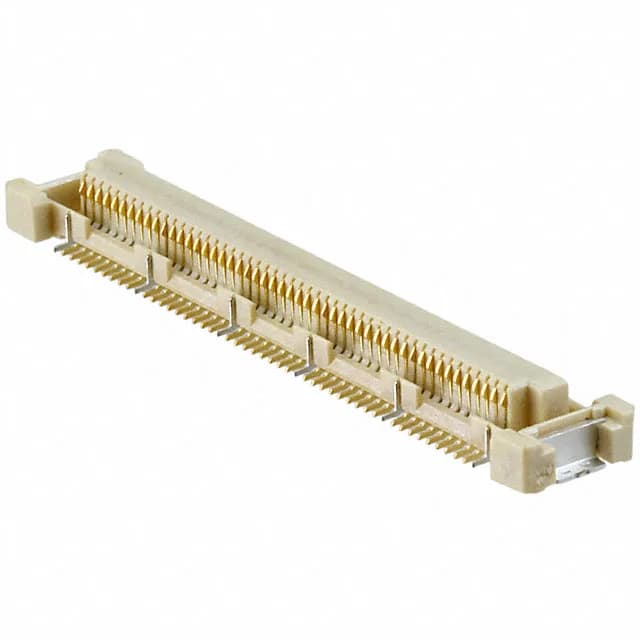

0.60 mm Pitch Mezzanine Receptacle, 100 Positions, 4 mm Stack Height
Gold plating at 8.00 µin on the contact finish provides corrosion resistance for the expected mating cycle count in production or field service.
The 0.60 mm pitch forces a dense via escape pattern; a multi-layer breakout is typical for routing all 100 signals out of the connector footprint. The 0.128" (3.25 mm) height above the board on the receptacle side leaves clearance for passives on the underside of the mating board.
The center strip contact arrangement provides a controlled ground-signal-ground interface that helps maintain signal integrity through the mezzanine stack.
