The 535542-7: This receptacle accepts square-pin headers from the AMPMODU Mod IV series with a matching 0.100" pitch and dual-row layout. The bottom or top entry style means the connector can be wired from either side of the board, simplifying cable routing in tight enclosures.

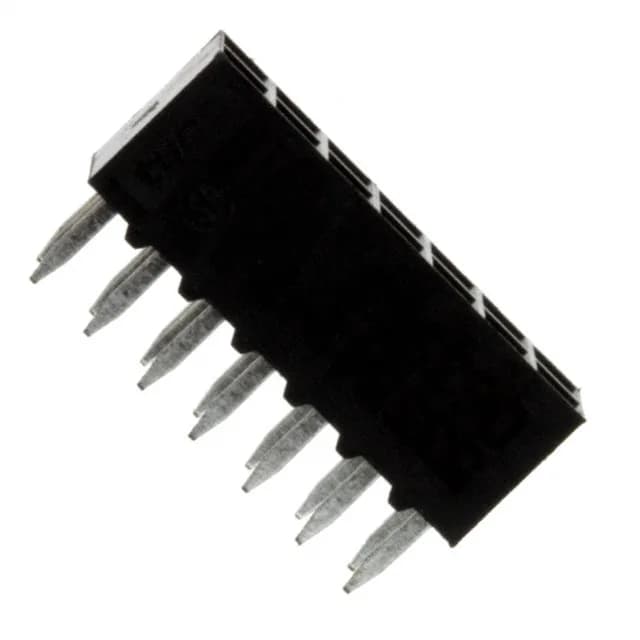

535542-7 TE Connectivity AMPMODU Mod IV 14-Pin Receptacle
MPN535542-7
Active
TE Connectivity AMPMODU Mod IV, 535542-7, 14-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, gold mating contacts, rated 2 A, active production.
$2.3965Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy the 535542-7 and check stock?
The 535542-7 is sourced through independent distribution. Stock levels and pricing are confirmed at the time of an RFQ — no live inventory figure is maintained on this listing. Submit a quote request for current availability and lead time.
What is the mating connector for the 535542-7?
The 535542-7 mates with a dual-row, 0.100" pitch square-pin header from the AMPMODU Mod IV series. The header must have 14 positions loaded to match the receptacle's circuit count.
