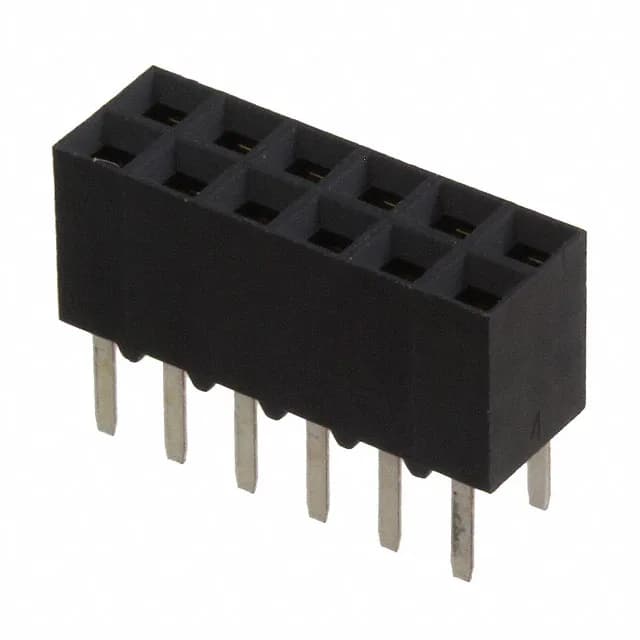

TE Connectivity AMPMODU Mod IV receptacle, order code 535598-7, 12 positions, dual row, 0.100" (2.54mm) pitch, 2A, gold-plated mating contacts, through-hole, solder termination.
535598-7 TE AMPMODU Mod IV Receptacle, 12 Pos, 2.54mm
MPN535598-7
Obsolete
TE Connectivity AMPMODU Mod IV receptacle, order code 535598-7, 12 positions, dual row, 0.100" (2.54mm) pitch, 2A, gold-plated mating contacts, through-hole, solder termination.
$2.8200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board or Cable |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 535598-7 in the AMPMODU Mod IV family?
Any alternative must be evaluated for footprint and mating compatibility independently.
