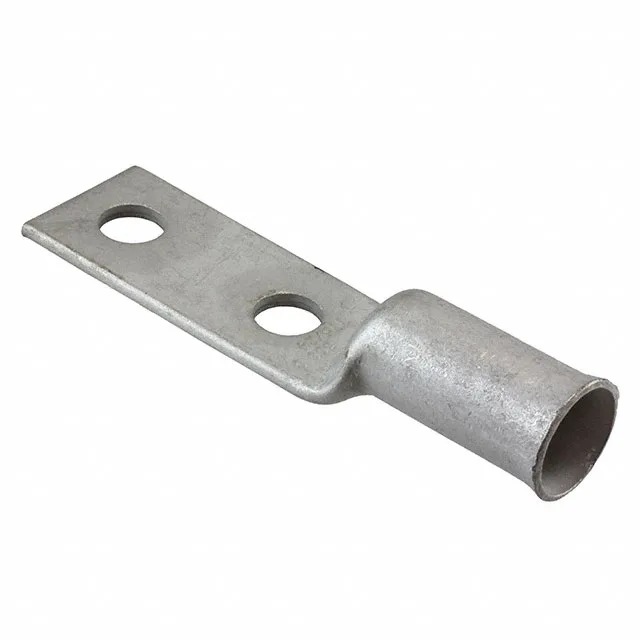

TE Connectivity AMP Connectors 53684-2
MPN53684-2
Active
CONN TERM RECT TONG 300 MCM #1/2
$28.56Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAmpower
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Ampower |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Rectangular Tongue |
| Wire gauge | 300MCM (kcmil) |
| Terminal style | Two Stud Holes |
| Contact material | Copper |
| Width - outer edges | 1.400\" (35.56mm) |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp, Barrel |
| Stud (Tab size) | 1/2 Stud |
| Tab thickness | 0.160\" (4.06mm) |
| Contact finish | Tin |
| Length - overall | 5.252\" (133.40mm) |
| Diameter - ring ID | 0.562\" (14.27mm) |
| Diameter - barrel ID | 0.758\" (19.25mm) |
| Diameter - barrel OD | 1.142\" (29.01mm) |
