TE Connectivity AMP Connectors 53884-4 — Connector Housings

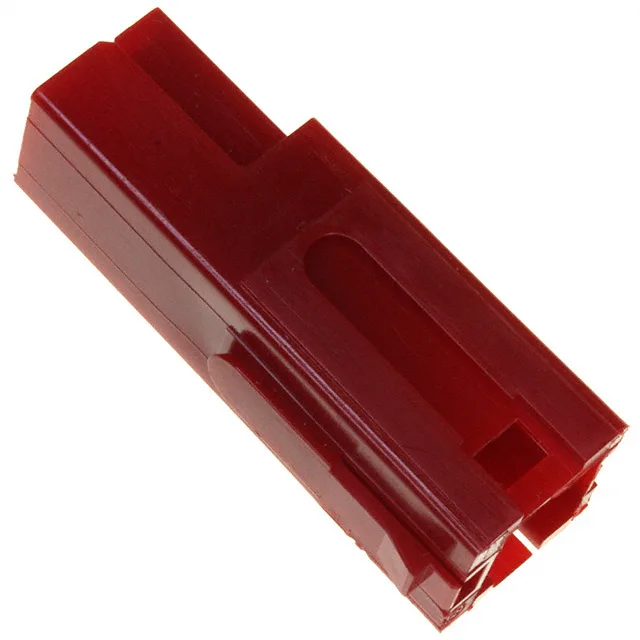

TE Connectivity 53884-4 Power Lock Series II Housing, 1 Pos

MPN53884-4
Active

TE Connectivity Power Lock Series II, 53884-4, 1 Position, 1 Row, Free Hanging, Crimp, Locking Ramp, Red, Self-Mating Housing, -40°C to 75°C.

$5.8800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Lock Series II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

53884-4 specifications
ParameterValue
SeriesPower Lock Series II
TypeNon-Gendered
MountingFree Hanging (In-Line)
Connector typeSelf Mating
Fastening typeLocking Ramp
Operating temperature-40°C ~ 75°C
ColorRed
Insulation materialPolycarbonate (PC)
NoteContacts Not Included
PackageBulk
Rows1
Contact terminationCrimp
Positions1

Product details

The TE Connectivity 53884-4 is a 1-position Power Lock Series II housing — a free-hanging, inline splice shell that mates with an identical counterpart. The self-mating design means two of these housings, each loaded with a crimp terminal, snap together to form a wire-to-wire connection. The locking ramp on each half engages when mated, holding the pair together against vibration and cable tug. This is a single-wire splice housing, not a multi-circuit connector: one position, one wire per side.

Contacts Are Ordered Separately — Here Is What Fits

It accepts non-gendered crimp terminals that are also ordered separately under the 53884 base product number family. The crimp termination style means the wire is attached to the contact before it is inserted into the housing. For the exact contact part number and wire gauge range, reference the TE Connectivity Power Lock Series II application tooling drawing — the base number 53884 is the starting point for the contact search.

There is no official second-source or cross-reference on file; the 1-1703532-1 is a different series (sealed, 2-position, black PBT housing) and is not a functional replacement.

Frequently asked questions

What contacts are used with the 53884-4 housing?

The 53884-4 is a housing only — contacts are not included. It accepts non-gendered crimp terminals from the 53884 base product number family. The specific contact part number and wire gauge range are found in the TE Power Lock Series II documentation under base number 53884.

Is 53884-4 a male or female connector?

Neither — the 53884-4 is a self-mating housing. It uses non-gendered contacts and the housing itself has no male/female designation. Two identical 53884-4 housings, each loaded with a crimp terminal, mate together to form a wire-to-wire splice.
