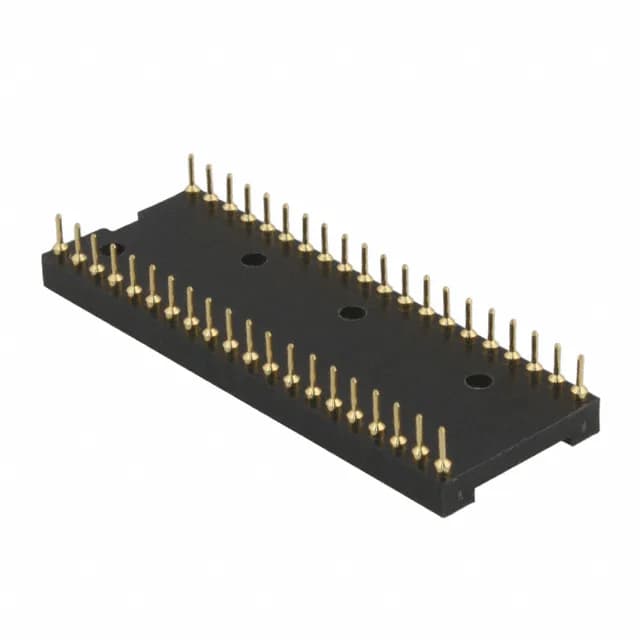

TE Connectivity AMP Series 500 DIP socket, order code 540-AG10D-ES, 40 positions (2 x 20), 0.100" (2.54mm) pitch, gold mating contacts, 10mOhm contact resistance, through-hole solder termination, closed-frame design.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Contact material - post | Brass |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Number of positions or pins | 40 (2 x 20) |
The 540-AG10D-ES is a 40-position (2 x 20) DIP socket from TE Connectivity's AMP Series 500, designed for 0.600" (15.24mm) row spacing. Gold-plated beryllium copper mating contacts deliver 10mOhm contact resistance; the brass post accepts solder termination through a 0.125" (3.18mm) tail.
Available through independent surplus channels.
Any functional replacement requires a board spin — the pitch, pinout, and footprint must be verified against the original layout.
