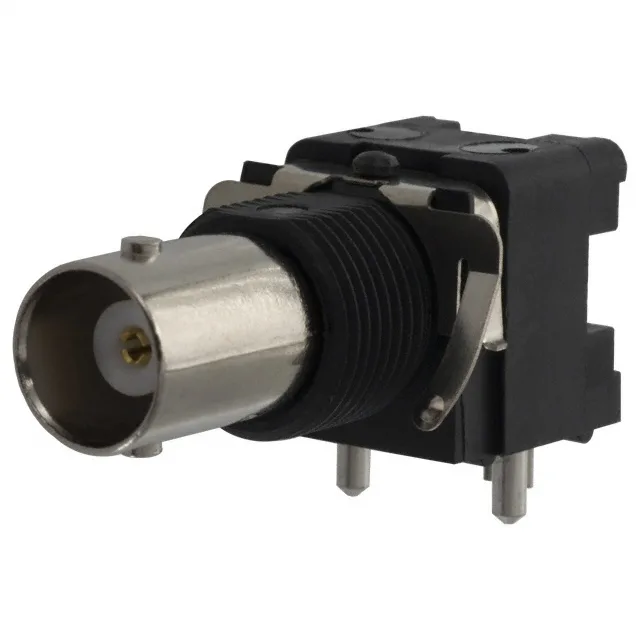

5413524-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5413524-2 BNC Jack, 50 Ohm, 1 GHz, Obsolete

MPN5413524-2
Obsolete

TE Connectivity 5413524-2 BNC jack, female socket, 50 Ohm, 1 GHz, 500 V, right-angle through-hole panel mount, gold-plated centre contact, bulk.

$14.4500Ref. price · indicative, final on quote
5413524-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5413524-2 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorBlack, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesBoard Guide, Filter, Isolated
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

What This BNC Jack Does in the Assembly

The 5413524-2: It carries a 500 V rating and is specified to 1 GHz, which puts it at the practical limit for standard BNC interfaces; above that frequency the slot in the outer conductor causes mode issues.

Right-angle through-hole mounting with a front-side bulkhead nut. Shield and centre contact terminate by solder.

Buyers holding a BOM line for the 5413524-2 should evaluate a functional equivalent from the same BNC family or secure remaining surplus stock.

What the Features Mean on the Bench

The jack includes a board guide, a filter, and is listed as isolated.

Frequently asked questions

Where can I buy the TE 5413524-2 BNC jack?

The 5413524-2 is obsolete and no longer in production.

What is the replacement for TE 5413524-2?

TE has not published an official replacement for the 5413524-2. A functionally similar 50 Ohm BNC jack with right-angle through-hole mounting and a bayonet lock would be the closest substitute — verify the board footprint, panel cutout, and filter requirements before substituting.
