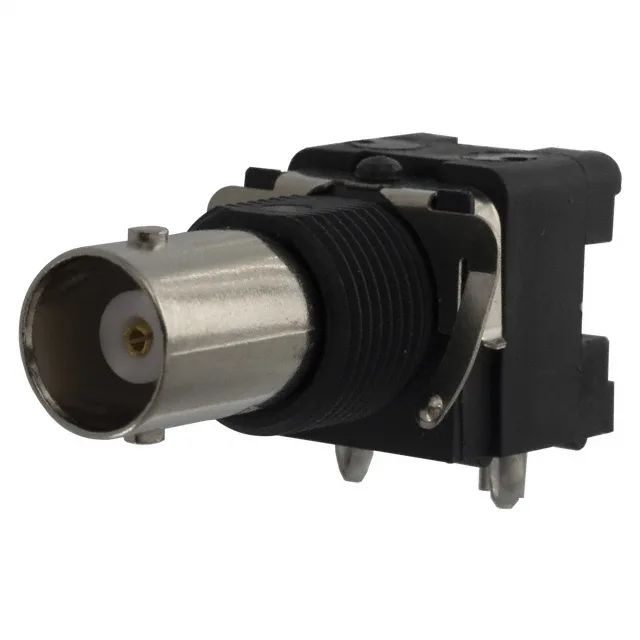

5413524-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5413524-5 BNC Jack, 50 Ohm, 1 GHz, Obsolete

MPN5413524-5
Obsolete

TE Connectivity BNC jack, female socket, 50 Ohm, 1 GHz, 500 V, 500 mating cycles, panel mount, right angle, through hole, bulk package.

$14.4500Ref. price · indicative, final on quote
5413524-5 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5413524-5 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorBlack, Silver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesBoard Lock, Filter, Isolated
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

BNC Jack with Board Lock and Filter — 50 Ohm, 1 GHz

It carries a 1 GHz frequency maximum and a 500 V voltage rating, with 500 mating cycles rated. The connector uses a bayonet lock for quick coupling and is terminated via solder contacts. This part includes board lock, filter, and isolated features — the board lock aids retention during assembly, while the filter and isolated construction may be used for signal conditioning or grounding isolation in sensitive RF paths.

Engineers should verify the board lock, filter, and isolated features against any replacement candidate, as these are not present on standard BNC jacks.

Compatibility and Application

This BNC jack mates with standard BNC plugs (male) with bayonet coupling. The 50 Ohm impedance and 1 GHz bandwidth suit it for RF signal paths in test equipment, instrumentation, and telecom gear where a filtered or isolated port is specified. The dielectric material is polymethylpentene (PMP), a low-loss RF-grade plastic.

Frequently asked questions

Where can I buy 5413524-5 available via RFQ confirmation?

The 5413524-5 is obsolete and sourced through independent distribution against an RFQ. Current availability and pricing are confirmed at quote time — contact the storefront with your BOM for a same-day quote.

Is 5413524-5 obsolete and what are the alternatives?

Yes, the 5413524-5 is marked Obsolete by TE Connectivity. No official replacement part number is listed. Any alternative must match the 50 Ohm BNC form factor, right-angle panel mount, and include the board lock, filter, and isolated features — these are not standard on all BNC jacks, so verify the replacement's feature set before specifying.

What is the pinout and mounting for 5413524-5?

The 5413524-5 is a BNC jack with a female socket center contact. Mounting is panel mount via a bulkhead front-side nut, with through-hole right-angle solder tails for PCB attachment. The center contact is soldered, and the shield is terminated by solder to the bulkhead. The board lock provides additional retention.

Is 5413524-5 compatible with standard BNC cables?

Yes, the 5413524-5 uses a standard BNC bayonet lock and mates with any male BNC plug that has a 50 Ohm impedance and bayonet coupling. The female socket center contact accepts the male pin of a standard BNC plug.
