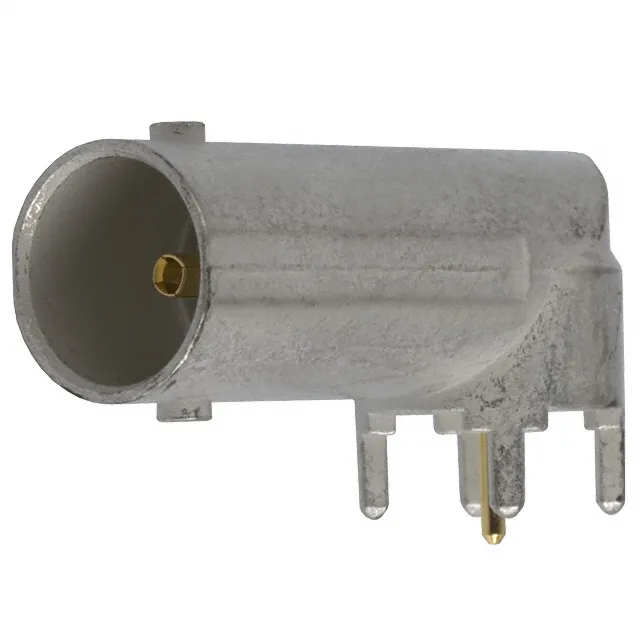

5413558-2 — TE Connectivity AMP Connectors product photo

TE Connectivity 5413558-2 BNC Jack, 75 Ohm, 2 GHz, Obsolete

MPN5413558-2
Obsolete

TE Connectivity BNC jack, 75 Ohm, right-angle through-hole, 1 port, bayonet lock, solder termination, gold center contact, 500 V, 2 GHz, Bulk.

$1.8600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5413558-2 Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance75Ohm
Body finishTin
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 5413558-2: Rated to 2 GHz and 500 V, this is a 75 Ohm variant of the standard BNC — the impedance matters because 75 Ohm BNCs are used in video, broadcast, and telecommunications signal paths, not the 50 Ohm RF world of test equipment and radio.

At 2 GHz max frequency, this jack covers SDI video, baseband video, and lower-frequency telecom links. The 500 mating cycles mean the bayonet lock and center contact will hold up through regular reconnection in a patch panel or field-test setup, but it's not a high-cycle production interconnect.

The bayonet lock gives a positive mechanical mate without the rotation of a threaded connector, which is faster to engage in a rack or panel environment.

Lifecycle Reality — Obsolete, Sourced on RFQ

If you need a current-production 75 Ohm BNC jack, a parametric search for right-angle through-hole 75 Ohm BNCs with bayonet lock and solder termination will surface active alternatives, but no direct pin-compatible replacement is documented.

Frequently asked questions

Where can I buy 5413558-2?

The 5413558-2 is obsolete and sourced through independent distribution on a quoted-to-order basis against an RFQ.
