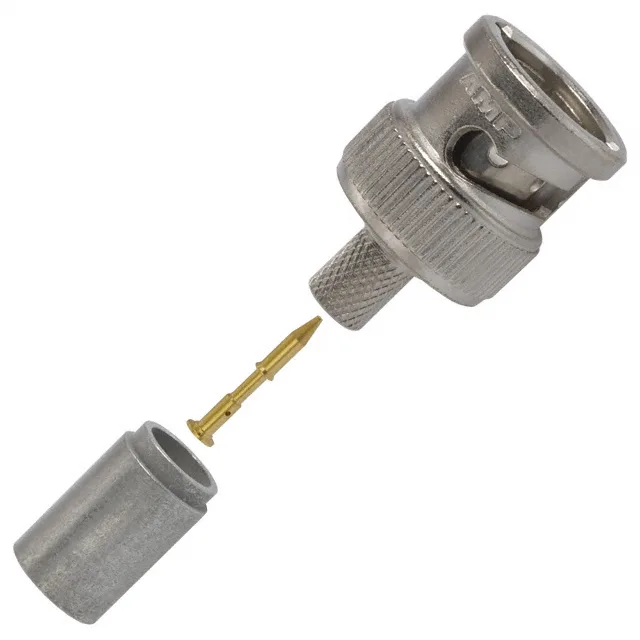

5413589-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5413589-1 BNC Plug, 75 Ohm, 2 GHz, Obsolete

MPN5413589-1
Obsolete

TE Connectivity BNC plug, male pin, 75 Ohms, 2 GHz, crimp termination, nickel body, gold center contact, free-hanging, 500 mating cycles, bulk.

$4.4900Ref. price · indicative, final on quote
5413589-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5413589-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupBelden 88241
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 5413589-1: It carries a 2 GHz maximum frequency with 0.15 dB insertion loss across the band, which puts it in the right range for SDI video, CCTV, and broadcast distribution where the impedance match matters more than the raw frequency ceiling. The polyethylene dielectric keeps the impedance stable through the crimp termination.

Obsolete — Sourcing Reality for the 5413589-1

There is no official direct replacement order code on record from the manufacturer.

This plug is engineered for the Belden 88241 cable. The free-hanging, in-line mounting is standard for patch panels and field-terminated cable runs where a PCB footprint is not involved.

Frequently asked questions

Where can I buy the TE 5413589-1 connector?

The 5413589-1 is an obsolete part sourced through independent distribution. Submit an RFQ through this listing to get a current sourcing picture.

What is the direct replacement for TE 5413589-1?

TE Connectivity has not published an official direct replacement order code for the 5413589-1. For a form-fit-function substitute, the best approach is to search for a 75 Ohm BNC plug with crimp termination for Belden 88241 cable — the replacement will need to match the 75 Ohm impedance, bayonet lock, and cable group.
