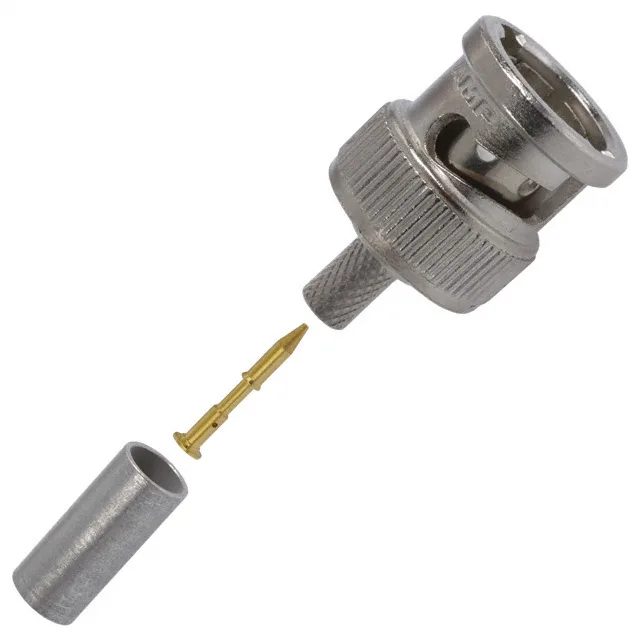

The kit includes the connector body, one crimp contact, and one ferrule — three pieces total, sold as a set.
The 75 Ohm impedance targets video distribution, broadcast, and CCTV applications. The 2 GHz bandwidth covers standard-definition and most high-definition video signals. The 500 mating cycles rating means this plug holds up well in field-service scenarios; the gold-plated centre contact resists corrosion across those cycles.
Termination and Cable Compatibility
The listed cable group is Belden 8218 — a 75 Ohm coax. If you are using a different 75 Ohm cable, verify the dielectric diameter and braid coverage match the ferrule and centre-contact crimp barrel dimensions from the TE product drawing.
Sourcing Reality — Obsolete Status
The manufacturer lists this part as Obsolete. Sourcing runs through the surplus and broker channel — the storefront can quote it against an RFQ, but availability and pricing are confirmed only at quote time. If your BOM calls for this exact number, plan for a last-time-buy or a cross-reference to a current 75 Ohm BNC plug from the same or another brand.
