TE Connectivity 5413590-3 BNC jack, female socket, 75 Ohm, 2 GHz, bulkhead front-side nut, crimp termination, nickel body, gold center contact, 500 mating cycles.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 2 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | Belden 8218 |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polyethylene (PE) |
| Center contact material | Beryllium Copper |
| Parameter | Value |
|---|---|
| Package | Box |

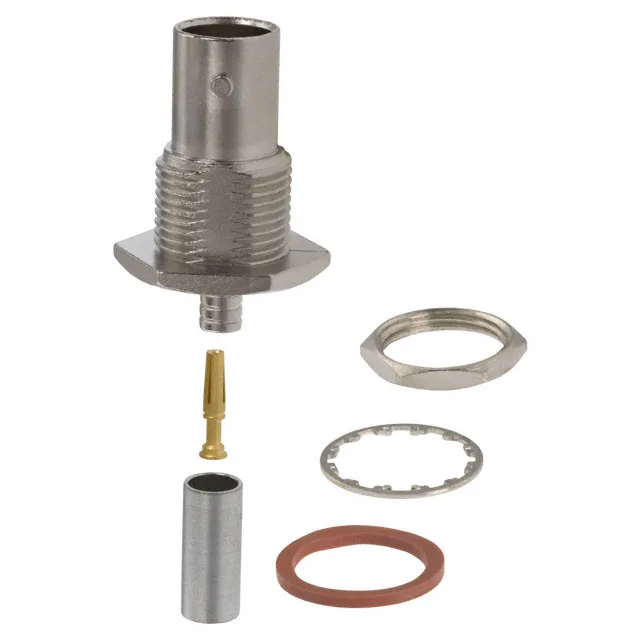

| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.15dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 5413590-3: The kit is specifically matched to Belden 8218 cable, a 75 Ohm precision video coax.
The bayonet lock engages fast and holds firm; the nickel-plated zinc body and gold-plated beryllium copper center contact keep corrosion at bay in studio or field environments.
TE Connectivity has not published an official replacement order code for the 5413590-3. For a 75 Ohm BNC bulkhead jack that works with Belden 8218, you would need to cross-reference the electrical and mechanical specs — 75 Ohm impedance, 2 GHz bandwidth, crimp termination, and the same panel cutout — against current TE or Amphenol RF catalog numbers.
