TE Connectivity BNC jack, 50 Ohm, 1 port, bulkhead front-side nut mount, crimp termination for RG-58 cable, 4 GHz max, 500 V, 500 mating cycles, silver zinc body with nickel finish, includes full installation kit.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 500 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Cable group | RG-58, 58A, 58B, 58C, Belden 88240 |
| Operating temperature | -55°C ~ 85°C |
| Body material | Zinc |
| Housing color | Silver |
| Dielectric material | Polymethylpentene (PMP) |
| Center contact material | Beryllium Copper |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohms |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 5413771-1: The bayonet lock fastening gives a quick quarter-turn mate — standard BNC field behavior.
The cable group is explicitly RG-58, 58A, 58B, 58C, and Belden 88240 — if you're running any of those, the ferrule and contact dimensions are matched.
If you're designing a new panel, look at current-production 50 Ohm BNC jacks with the same RG-58 crimp footprint; the bayonet lock and bulkhead mount are standard across the interface.
The 5413771-1 is compatible with RG-58, 58A, 58B, 58C, and Belden 88240 cable groups. The ferrule and contact are sized for these specific coax types.

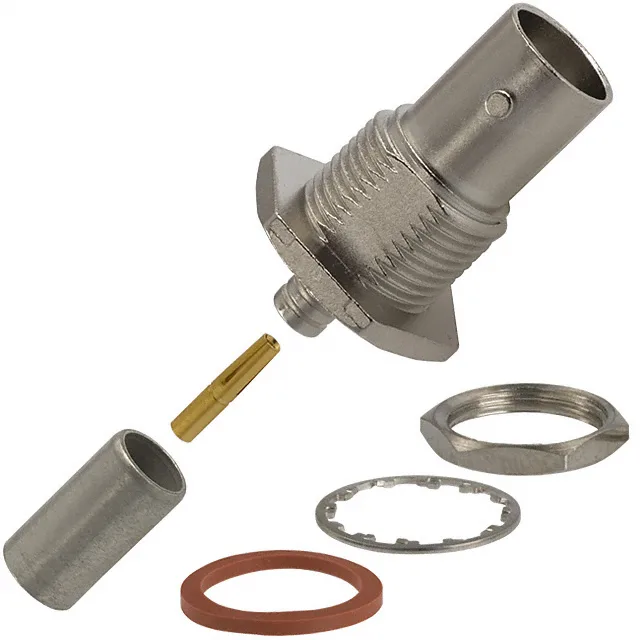

Yes, the package includes 6 pieces: one connector body, one contact, one ferrule, one gasket, one lockwasher, and one nut. It's a complete installation kit for a bulkhead mount.
