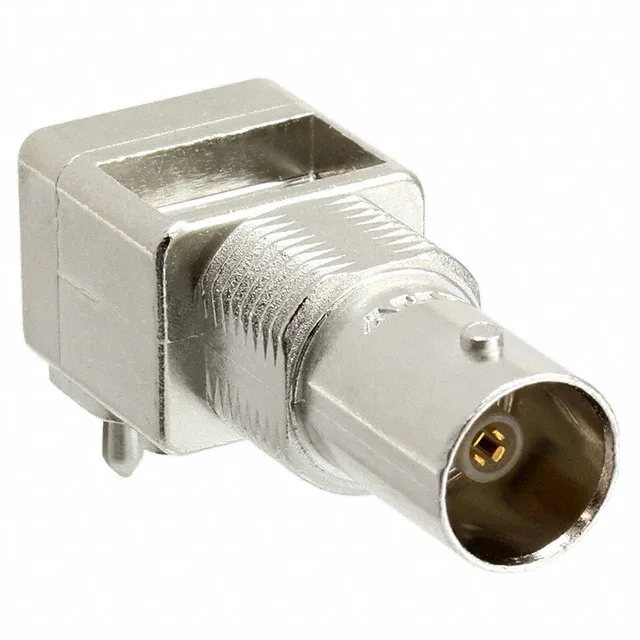

5415417-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5415417-1 BNC Jack, 75 Ohm, 2 GHz, Obsolete

MPN5415417-1
Obsolete

TE Connectivity BNC jack, 75 Ohm, 1 port, panel mount through-hole right angle, bulkhead front side nut, bayonet lock, 500 mating cycles, 2 GHz, gold centre contact, board lock, tray.

$3.0100Ref. price · indicative, final on quote
5415417-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5415417-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageTray
FeaturesBoard Lock
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm BNC Jack, Panel-Mount, Right-Angle — Obsolete

The 5415417-1: It mounts through a panel bulkhead using a front-side nut and terminates to the PCB via right-angle solder posts.

The 5415417-1 is listed as Obsolete. No direct pin-compatible drop-in from the same manufacturer is documented.

75 Ohm Signal Path, 2 GHz Ceiling

The 75 Ohm impedance targets standard video and CCTV distribution. The 2 GHz maximum frequency covers composite video and SDI.

Board Lock and Panel Mount

The board lock feature provides mechanical retention during wave soldering and resists the torque applied when tightening the bayonet coupling nut. The panel mount uses a bulkhead front-side nut, so the connector body is fixed to the enclosure before the PCB is soldered — the right-angle solder tails then align to the board.
