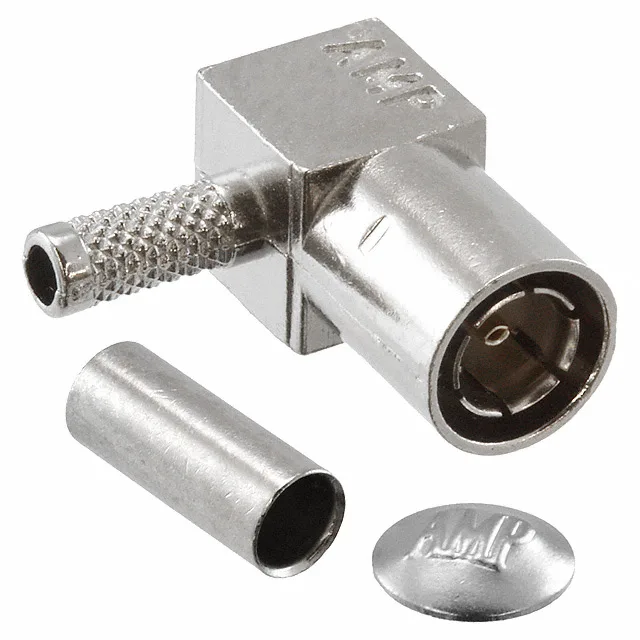

5415484-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5415484-2 SMB Mini Plug, 75 Ohm, RG-179, Obsolete

MPN5415484-2
Obsolete

TE Connectivity SMB, Mini plug, 5415484-2, 75 Ohms, 4 GHz, RG-179, right-angle, solder contact, crimp shield, snap-on, nickel body, -65°C to 165°C.

$4.2100Ref. price · indicative, final on quote
5415484-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5415484-2 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeSnap-On
Frequency - max4 GHz
Cable groupRG-179
Operating temperature-65°C ~ 165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The 5415484-2: It terminates with a solder contact and a crimp shield, secured by a snap-on fastening.

Is 5415484-2 obsolete?

Yes — the 5415484-2 is listed as Obsolete.

Does 5415484-2 fit RG-179 cable?

Yes — the connector is specified for Cable Group RG-179. The right-angle body and crimp shield termination are matched to that cable's dielectric diameter and braid coverage. The zinc body carries a nickel finish.

What is the impedance of 5415484-2?

75 Ohms nominal. The PTFE dielectric sets the impedance.

Is 5415484-2 a BNC connector?

No — the connector style is SMB, Mini, not BNC. The two share a similar snap-on coupling, but the SMB body is smaller and the impedance and cable group differ. A BNC jack will not mate with this SMB plug.

Frequently asked questions

What is the replacement for TE 5415484-2?

Critical for design-in or repair when the original part is unavailable.

Is 5415484-2 obsolete?

Determines if the part can be sourced or needs substitution.

Does 5415484-2 fit RG-179 cable?

Ensures compatibility with the cable type in use.

What is the impedance of 5415484-2?

Impedance matching is vital for signal integrity.

Where can I buy 5415484-2?

Directs to sources for remaining stock.

Is 5415484-2 a BNC connector?

Confirms connector family for system design.
