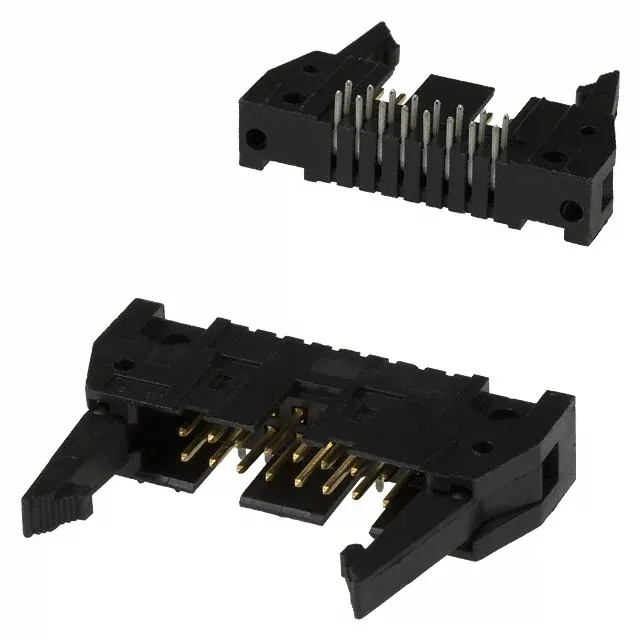

TE Connectivity AMP-Latch header, 5499141-3, 16-position dual-row, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, 1 A per contact, 250 VAC, 30 µinch gold or gold-palladium mating finish, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-wall shrouded housing with keying slot and mounting flange protects the 0.240" (6.10 mm) long square pins from misalignment during mating, and the long latch lock/eject hooks provide a positive grip on the mating housing without prying the plastic.
Post tails are tin-plated at 100 µinch (2.54 µm) for reliable solder wetting in wave or hand-solder assembly.
Yes, it is listed as ROHS3 compliant.
