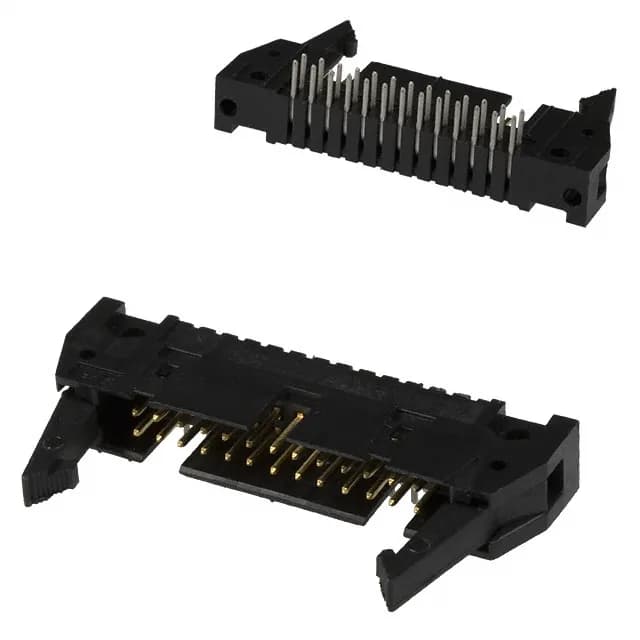

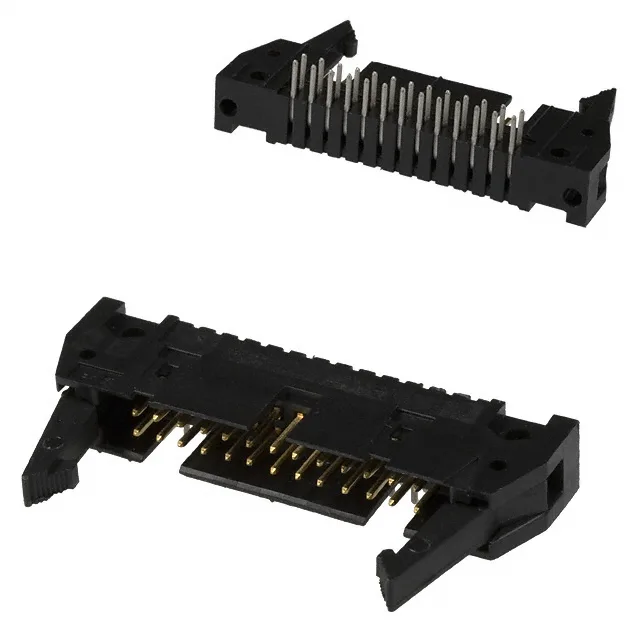

5499141-6 TE Connectivity AMP-Latch Header 26 Pos 2.54mm R/A

MPN5499141-6
Active

TE Connectivity AMP-Latch shrouded header, 26 positions, 2 rows, 0.100" (2.54mm) pitch, right-angle through-hole, gold or gold-palladium mating finish, 1 A per contact, 250 VAC, UL94 V-0.

$8.2700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5499141-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5499141-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.315\" (8.00mm)
Material flammability ratingUL94 V-0

All specifications

5499141-6 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Position Right-Angle Header for IDC Ribbon Cable

The long latch lock/eject hooks and mounting flange secure the mating connector and provide a mechanical anchor against cable pull.

Right-Angle Board Fit and Mating Cycle Life

The right-angle orientation sets the board footprint: the contact length — post 0.110" (2.79mm) and mating 0.240" (6.10mm) — determines the through-hole depth and the standoff from the PCB. The 0.315" (8.00mm) insulation height leaves room for the latch mechanism above the board surface. The keying slot prevents incorrect insertion — a standard feature across AMP-Latch headers.

Frequently asked questions

Is 5499141-6 compatible with standard IDC ribbon cable connectors?

The shrouded 4-wall design and keying slot guide the mating IDC receptacle into alignment. The long latch hooks lock the pair together.

What is the recommended PCB hole size for 5499141-6?

The post dimensions are 0.110" (2.79mm) length with a square pin cross-section. The exact PCB hole size depends on the board thickness and solder process — the datasheet provides the recommended hole diameter for through-hole solder termination.
