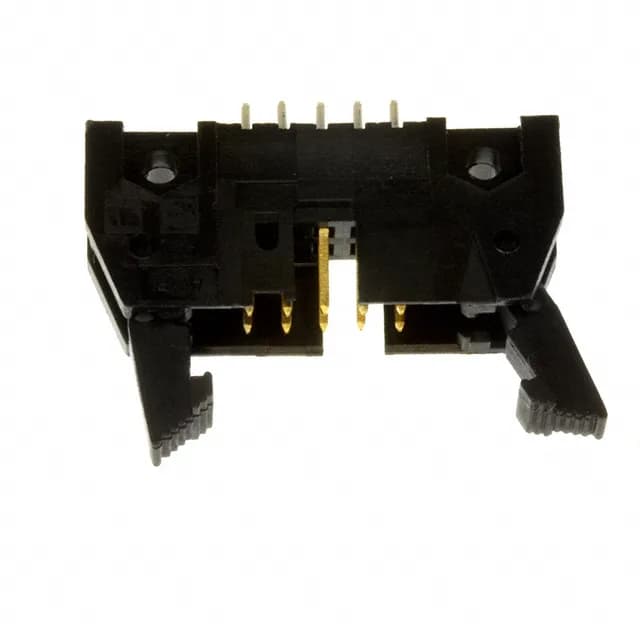

10-Position, 2.54mm Pitch, Shrouded Header
The latch lock/eject hooks (short) provide audible retention when mated and a lever to unseat the cable connector without prying — useful in dense board layouts where finger access is tight. The mounting flange adds mechanical stability to the through-hole solder joints against cable strain.
Board Layout and Routing Fit
The 0.110" (2.79mm) post length fits standard 1.6mm-thick PCBs with enough protrusion for a reliable solder fillet. The keying slot on the housing prevents mismating with non-keyed receptacles — confirm the mating half includes the matching key to avoid assembly errors. The mounting flange provides two additional through-hole anchors that share the mechanical load with the signal pins.
Peer Comparison — 1379030-3 vs 5499160-1
The 5499160-1 is vertical, 10 positions, with a gold/palladium mating finish rated for higher cycle life; the 1379030-3 is right-angle, 12 positions, with a tin mating finish suitable for lower-cycle, cost-sensitive builds. Both use 0.100" (2.54mm) pitch, dual rows, and shrouded 4-wall construction. The 5499160-1 has latch lock/eject hooks; the 1379030-3 uses a friction lock. Choose based on position count, orientation, and mating cycle requirements.
