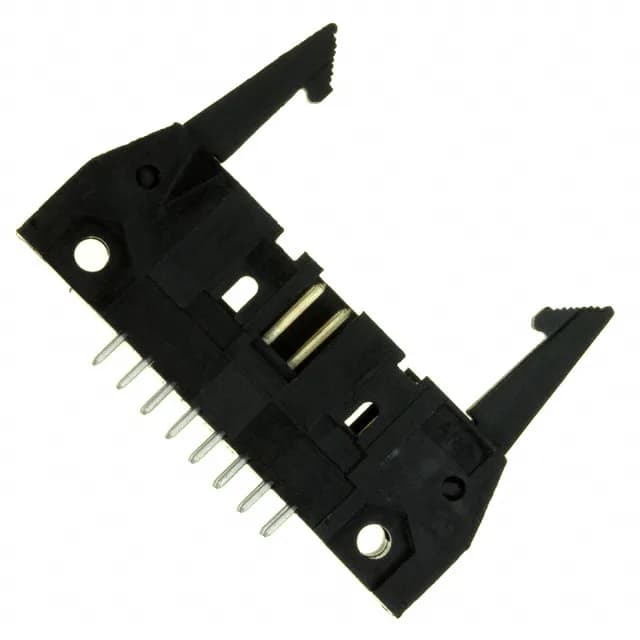

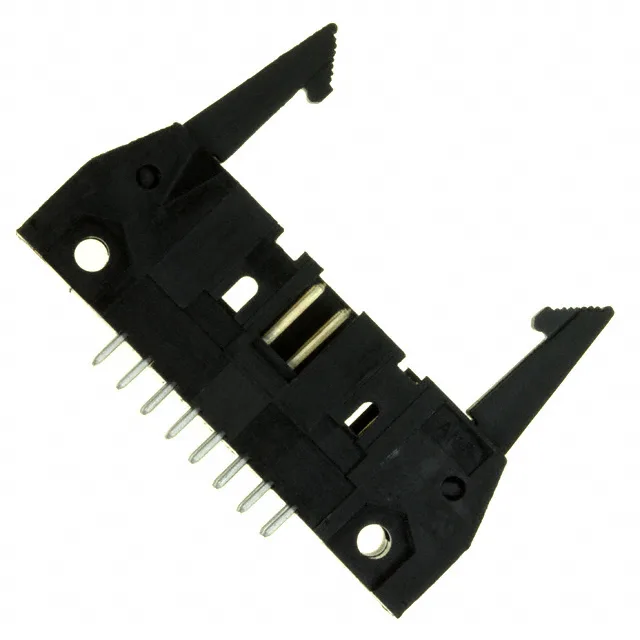

TE Connectivity AMP-Latch, 16-position, 2-row, shrouded header, 0.100" (2.54mm) pitch, through-hole solder, male pin, gold or gold-palladium mating finish, rated 1A at 250VAC.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The header mates with AMP-Latch IDC receptacles for 0.100" (2.54mm) ribbon cable — confirm the mating half part number against your cable assembly before committing the BOM.
The peer 1-1871673-2 is a 4-position, right-angle header with 0.098" (2.50mm) pitch and tin finish — not a direct pin-compatible replacement. For a 16-position, 2.54mm pitch, gold-finish header, 5499206-3 is the primary choice.
Use the matching AMP-Latch receptacle housing with the same pitch and row spacing.
