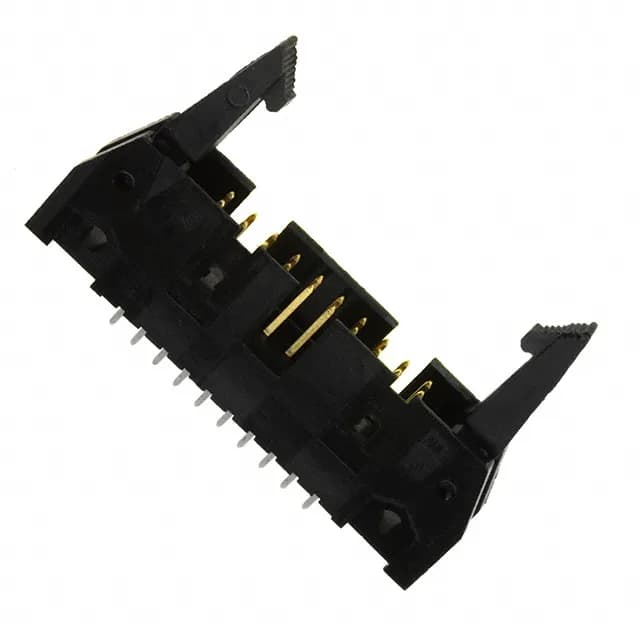

5499206-4 TE AMP-Latch Header 20 Pos 2.54mm

MPN5499206-4
Active

TE Connectivity AMP-Latch, 5499206-4, Board to Cable/Wire header, 20 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder, latch lock/eject hooks, gold mating finish, 1A, 250VAC, -65°C to 105°C, UL94 V-0.

$6.5400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5499206-4 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5499206-4 additional specifications
ParameterValue
PackageTray
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

20-pin AMP-Latch header for ribbon cable termination

The 5499206-4 is a 20-position, 2-row shrouded header from the TE AMP-Latch series, designed to mate with standard 0.100-inch (2.54mm) pitch IDC ribbon cable sockets. The long latch lock/eject hooks secure the mating cable connector and allow tool-less disengagement from the board.

Gold mating finish for repeated connect cycles

The mating contacts carry a gold or gold-palladium finish with a thickness of 30.0 microinches (0.76µm), supporting repeated mating cycles without degradation. The post tails are tin-plated (100.0 microinches / 2.54µm) for reliable solder wetting in through-hole assembly.

Board layout and termination notes

Through-hole mounting with 0.110-inch (2.79mm) post length and 0.639-inch (16.23mm) overall contact length; the 0.549-inch (13.94mm) insulation height provides clearance for the cable strain relief. The keying slot and mounting flange prevent mis-mating and add mechanical stability to the board interface.

Frequently asked questions

Can 5499206-4 be used with standard AMP-Latch cables?

Yes, this header is designed to mate with standard AMP-Latch IDC ribbon cable sockets that have a 0.100-inch (2.54mm) pitch and 20 positions. The latch lock/eject hooks secure the cable connector.

Is 5499206-4 RoHS compliant?

Yes, the 5499206-4 is RoHS compliant per TE Connectivity's lifecycle status.
