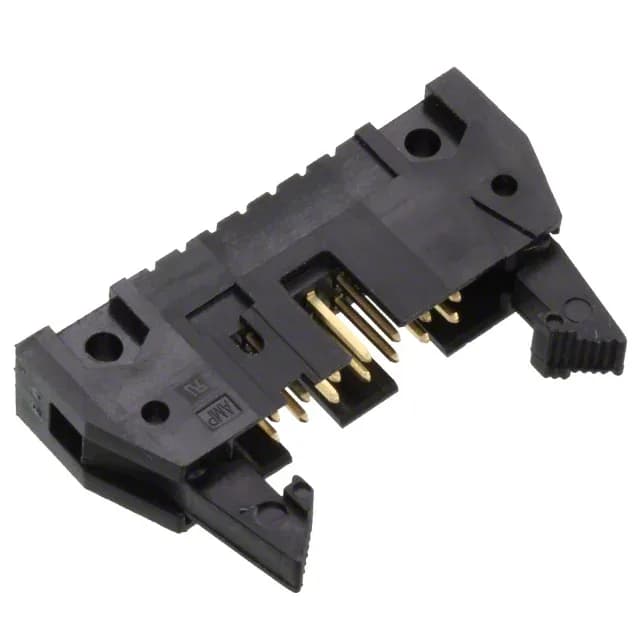

14-Position Dual-Row Header on 0.100" Pitch
The 5499345-2: All 14 positions are loaded — no empty slots — so the BOM circuit count matches the pin count exactly. Right-angle through-hole termination routes the mated cable parallel to the PCB, suiting board-edge cable exit in shallow enclosures or backplane-style wiring. The shrouded 4-wall housing protects the pins during handling and guides the mating receptacle.
30 µinch Gold Mating Finish and 1 A Current Rating
The mating contacts carry 30 µinch gold over nickel — a mid-grade industrial plating that supports repeated connect/disconnect cycles without fretting corrosion. In a field-service application where the connector is cycled monthly, that is well over a decade of service life at the contact interface.
Latch Lock, Keying Slot, and Mounting Flange
Short latch lock/eject hooks provide positive retention against vibration while allowing tool-free disconnection — a practical choice for rack-mounted or panel-access wiring where the cable is strain-relieved off-board. A keying slot prevents mismating with non-keyed receptacles, and the mounting flange gives a mechanical anchor to the panel or PCB, reducing shear stress on the solder joints from cable tugging.
