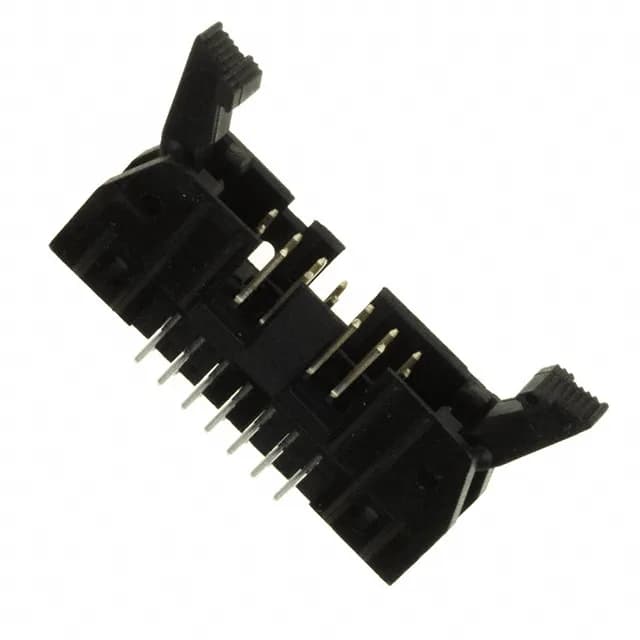

TE Connectivity AMP-Latch series header, 14 positions, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole solder termination, male pin contacts with 30µin gold or gold-palladium mating finish, latch lock/eject hooks, keying slot, mounting flange, UL94 V-0 black housing, rated 1A per contact at 250VAC, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.684\" (17.37mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5499374-2 is a 14-position, 0.100" (2.54mm) pitch header from TE's AMP-Latch series, designed to mate with standard 14-conductor IDC ribbon cable connectors.
Overall contact length of 0.684" (17.37mm) and mating contact length of 0.240" (6.10mm) define the z-height budget when mated with a ribbon cable connector — confirm the enclosure clearance before layout.
Yes, the 5499374-2 is listed as RoHS Compliant by TE Connectivity.
