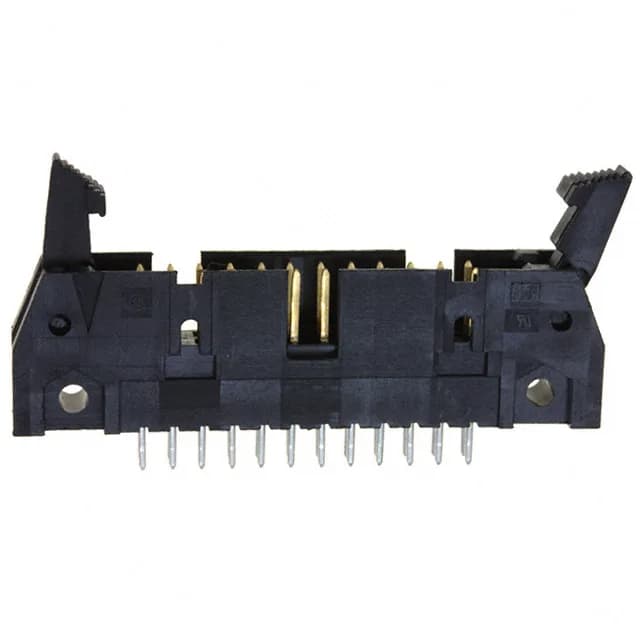

TE Connectivity AMP-Latch header, 5499374-5, 24 circuits, 2 rows, 0.100" (2.54mm) pitch, shrouded 4-wall, latch lock/eject hooks, through-hole solder, 1 A per contact, 250 VAC, -65°C to 105°C, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.684\" (17.37mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
A keying slot and mounting flange are included: the slot prevents mismating with non-keyed counterparts, and the flange adds through-hole stability during soldering and service.
The UL94 V-0 black insulation handles the thermal load within the rated envelope — no derating needed at 105°C for the current limit.
Submit a request for current pricing and lead time — no stock-holding claim; availability confirmed at quote.
Yes. The fastening type is latch lock/eject hooks (short), and the features include a keying slot and mounting flange.
