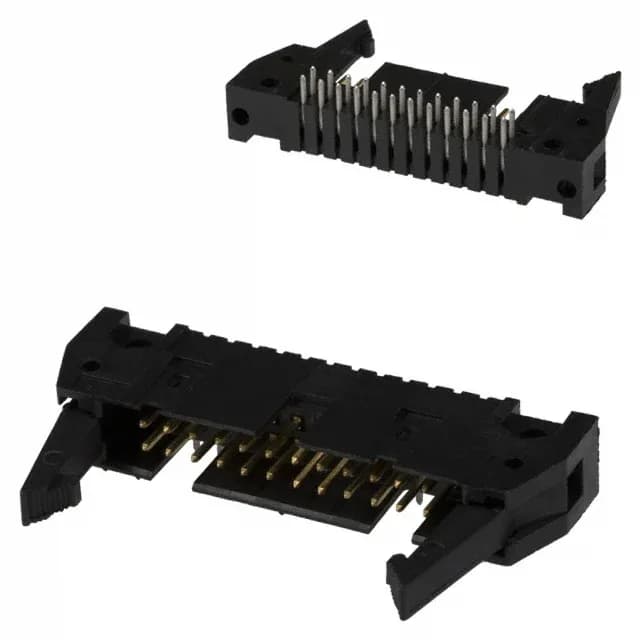

TE Connectivity AMP-Latch header, 5499786-5, 24 positions, 2 rows, 0.100" pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating pins, latch lock/eject hooks, UL94 V-0, active.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5499786-5: The mating half is a 24-position AMP-Latch receptacle housing (e.g., 1-111196-2 or similar) that accepts the matching crimp terminals for discrete wire or ribbon cable. The keying slot and mounting flange on the header prevent mis-mating and provide mechanical securement to the board.
ROHS3 compliant, UL94 V-0 rated housing.
Any 24-position AMP-Latch receptacle housing with 0.100" pitch, such as the 1-111196-2 series. The header's latch lock/eject hooks mate with the receptacle's locking ears.
