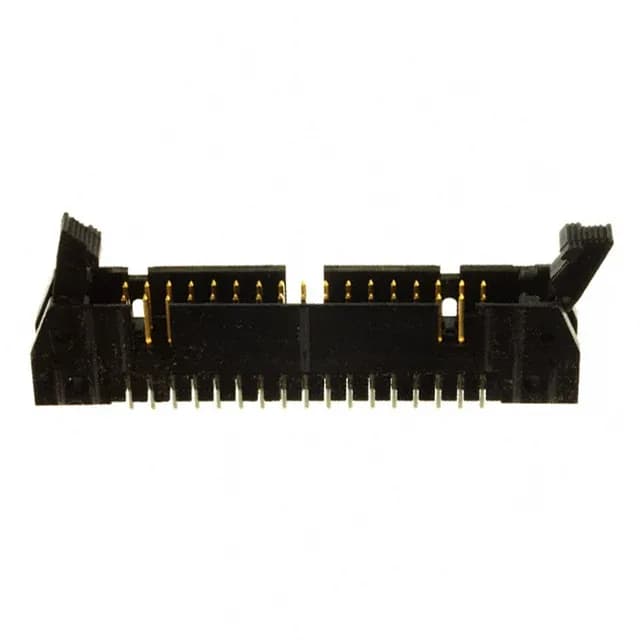

TE Connectivity AMP-Latch series, 34-position, dual-row, 0.100" (2.54mm) pitch, shrouded header with latch lock/eject hooks, keying slot, mounting flange, through-hole solder termination, UL94 V-0 black housing, gold or gold-palladium mating finish, 1 A per contact, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5499910-8: A keying slot prevents mis-mating with non-keyed receptacles, and a mounting flange adds mechanical retention to the PCB — both are useful in applications where the connector is mated/unmated repeatedly.
Yes, the 5499910-8 is ROHS3 compliant.
Yes, the header includes a keying slot and a mounting flange.
Rated 1 A per contact, with gold or gold-palladium mating finish (15.0µin thickness) for repeated mating cycles.
