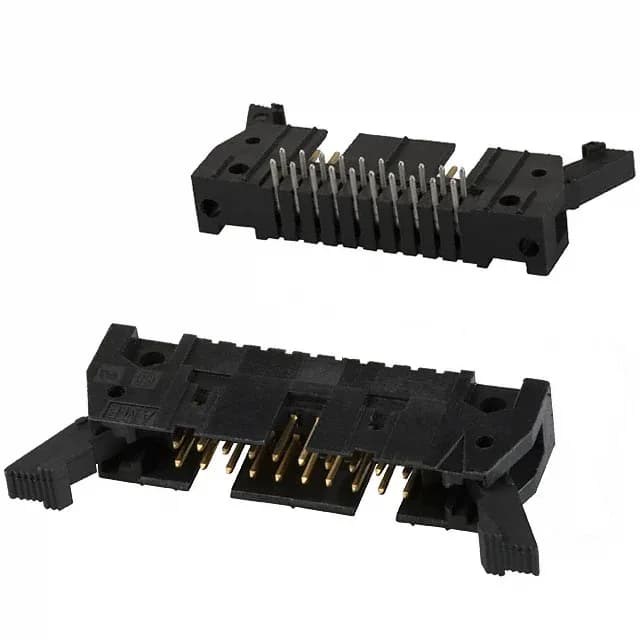

TE Connectivity AMP-Latch header, 5499913-4, 20 positions, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, gold mating finish, 1 A per contact, 250 VAC, latch lock/eject hooks, UL94 V-0, active.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
In a field-service application where the connector is cycled quarterly, that translates to decades of reliable contact at the interface. Latch lock/eject hooks secure the mated pair against vibration and accidental disconnection. The short eject hooks allow tool-less unmating while keeping the connector locked under cable strain.
ROHS3 compliant per the listing.
Yes, the listing confirms ROHS3 compliance.
The mating pitch is 0.100" (2.54 mm), with the same row spacing. This matches standard 0.100" IDC ribbon-cable receptacles and many discrete-wire housings.
