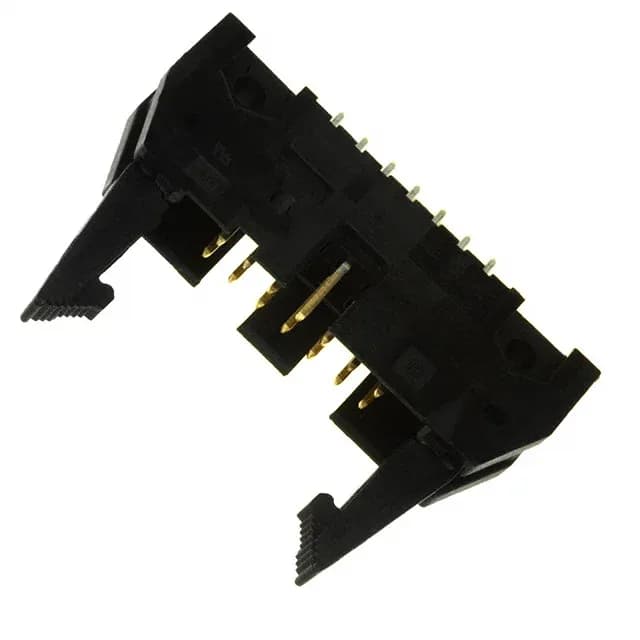

14-Position, 0.100" Pitch, Shrouded Header for Wire-to-Board
The 5499922-2 is a 14-position, dual-row header with a 0.100" (2.54mm) mating pitch and matching row spacing, designed for board-to-cable/wire connections. It is part of the TE AMP-Latch series, a long-running family of shrouded headers known for reliable IDC ribbon-cable and discrete-wire mating.
Mating Finish and Contact Reliability
The mating contacts are finished with gold or gold-palladium at 15.0 µin (0.38µm) thickness, while the solder tails are tin-plated at 100.0 µin (2.54µm). The latch lock/eject hooks provide a positive mechanical retention that prevents accidental disconnection under vibration, and the long eject hooks simplify unmating in dense board stacks.
