TE Connectivity AMP Connectors 5499922-6 — Pin Headers

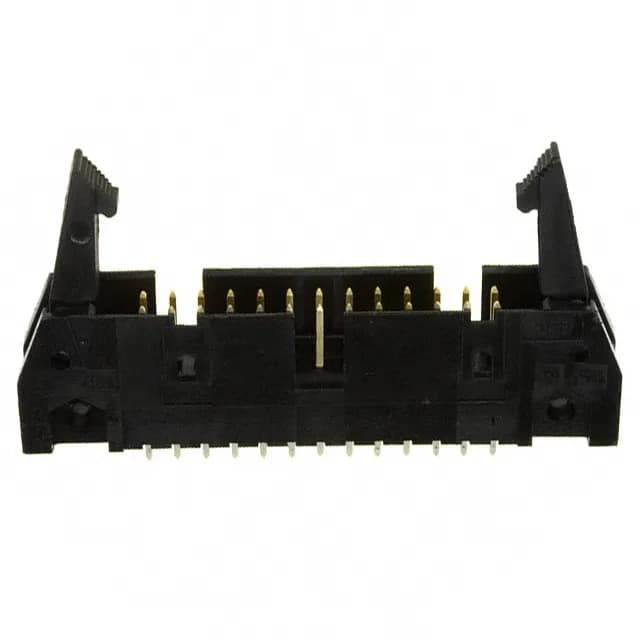

5499922-6 TE AMP-Latch Header 26 Pos 2.54mm

MPN5499922-6
Active

TE Connectivity AMP-Latch series, 5499922-6, shrouded header, 26 circuits, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder, latch lock/eject hooks, gold or gold-palladium mating finish, 1 A, 250 VAC, UL94 V-0, -65°C to 105°C.

$5.6300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5499922-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5499922-6 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5499922-6 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

Board-to-cable signal header for AMP-Latch IDC assemblies

The 5499922-6: The shrouded 4-wall design with keying slot and mounting flange provides polarization and mechanical alignment, reducing mis-mate risk during cable assembly.

This header mates with AMP-Latch IDC socket connectors that accept ribbon cable — the latch lock/eject hooks secure the cable assembly against vibration.

No stock-holding claim — availability varies by distributor. RoHS compliant per the listed status, with a UL94 V-0 rated housing for equipment inside enclosures requiring flame retardance.
