Board-to-cable header for AMP-Latch IDC termination

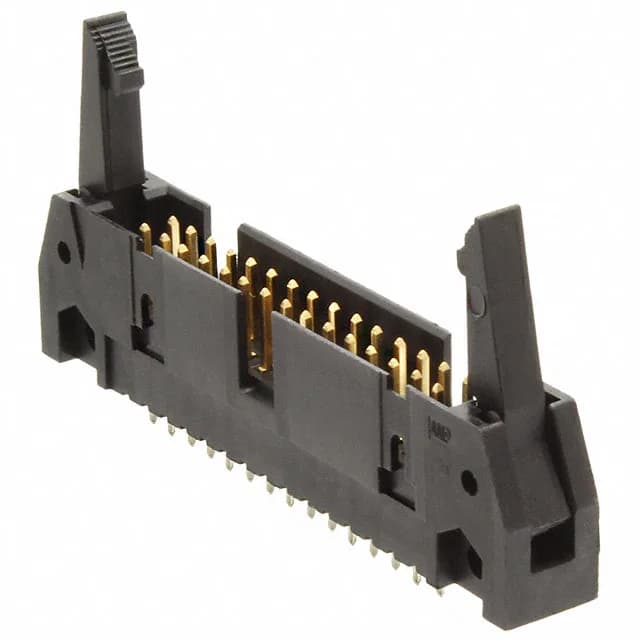

The 5499922-7 is a 30-position, 2-row, straight through-hole header from the TE AMP-Latch series, designed to mate with AMP-Latch IDC socket connectors for board-to-cable wiring. Mating pitch and row spacing are both 0.100 inch (2.54 mm), matching the standard 30-conductor IDC ribbon cable footprint.
Latch lock and eject hooks for field service
Long latch lock/eject hooks on the header snap into the mating receptacle for positive retention and allow tool-free extraction — useful when the connector sits in a tight enclosure or needs frequent rework. A keying slot and mounting flange add mechanical alignment and board-level hold-down during soldering and vibration.
RoHS3 compliant (lead-free) per the current revision.
