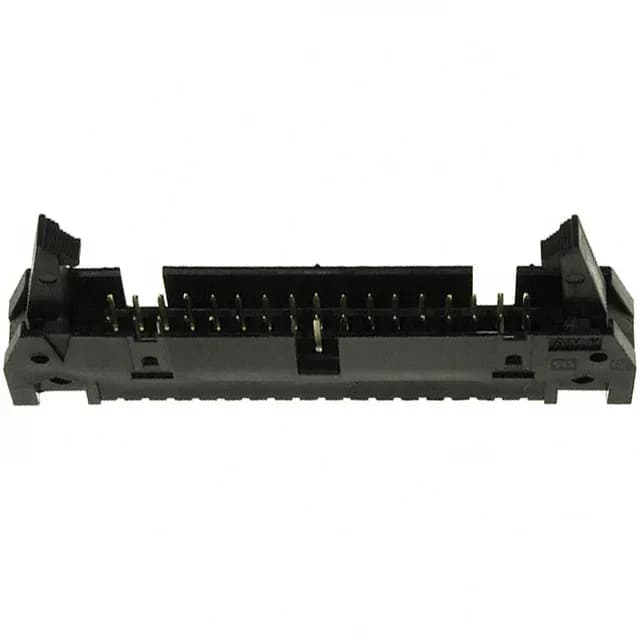

34-position AMP-Latch header for ribbon-cable harnesses
The 34 circuits match the conductor count of common 34-conductor IDC ribbon cable, making this a direct fit for mass-terminated cable assemblies. Long latch lock/eject hooks on both ends secure the mating socket and provide a mechanical advantage for disconnecting dense harnesses.
Pitch, footprint, and mating interface
Mating pitch is 0.100 inch (2.54 mm) with an identical 0.100-inch row spacing, creating a standard square grid that accepts AMP-Latch IDC sockets and other 0.100 x 0.100-inch cable connectors. The 34 positions are all loaded — no empty slots.
