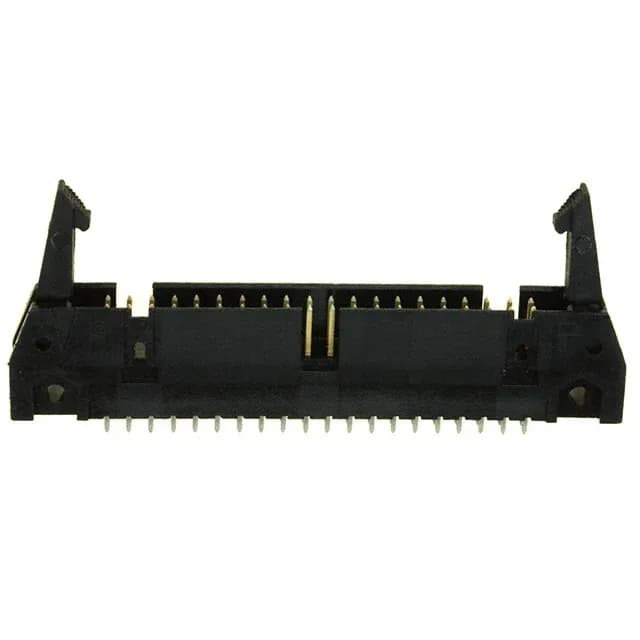

5499922-9 TE AMP-Latch 40-Pin Header 2.54mm Pitch

MPN5499922-9
Active

TE Connectivity AMP Connectors AMP-Latch series, 5499922-9, Board to Cable/Wire header, 40 circuits, 2.54mm pitch, shrouded 4-wall, through-hole solder termination, gold or gold-palladium mating finish, latch lock/eject hooks.

$7.9100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5499922-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5499922-9 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks, Long
Voltage rating250VAC
Current rating1A
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

5499922-9 additional specifications
ParameterValue
PackageBulk
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.639\" (16.23mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

40-Position AMP-Latch Header for Ribbon-Cable Interconnects

The 5499922-9 is a 40-position, dual-row, vertical through-hole header from the AMP-Latch series, designed for board-to-cable/wire applications using standard 0.100-inch (2.54mm) pitch IDC receptacles. Its shrouded 4-wall design with keying slot and mounting flange provides alignment and polarization, reducing mis-mating risk during assembly. The latch lock/eject hooks secure the mating receptacle and provide a lever for unmating — useful in dense boards where finger access is limited.

Contact Arrangement and Pinout

All 40 positions are loaded in a 2-row arrangement with 0.100-inch (2.54mm) row spacing, matching the standard AMP-Latch IDC footprint. The male square pins have a mating length of 0.240 inches (6.10mm) and a post length of 0.110 inches (2.79mm) for through-hole soldering.

Current and Environmental Ratings

Mating Finish and Cycle Life

Frequently asked questions

What is the pinout and contact arrangement of 5499922-9?

It is a 40-position, dual-row header with all positions loaded. The pins are male square pins arranged in two rows at 0.100-inch (2.54mm) pitch and row spacing.

Is the 5499922-9 shrouded header compatible with standard crimp sockets?

Yes, the 0.100-inch pitch and shrouded 4-wall design are compatible with standard AMP-Latch IDC receptacles and crimp-socket housings that accept male square pins of the same pitch.
