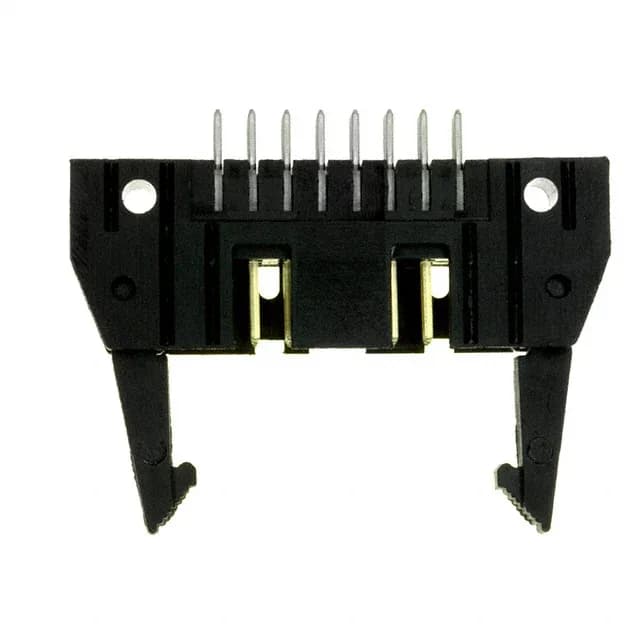

TE Connectivity AMP-Latch header, 5499923-3, 16 positions, 2.54mm pitch, dual-row, shrouded, through-hole, gold-plated mating contacts, latch lock/eject hooks, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A per Contact |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.155\" (3.94mm) |
| Overall contact length | 0.684\" (17.37mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5499923-3: A keying slot and mounting flange are built into the insulator, preventing mis-mating and offering a secondary anchor point for high-reliability assemblies.
Available in bulk packaging.
Overall contact length is 0.684" (17.37mm), with a mating pin length of 0.240" (6.10mm) and a solder tail of 0.155" (3.94mm) — these dimensions matter for board stack-up and through-hole solder joint inspection.
The mating pitch is 0.100" (2.54mm), with the same row spacing. This is the standard AMP-Latch pitch, matching the full series of IDC receptacles and headers.
Yes, it is ROHS3 compliant, meeting the latest EU directive. No RoHS exemption declarations are needed for this part.
