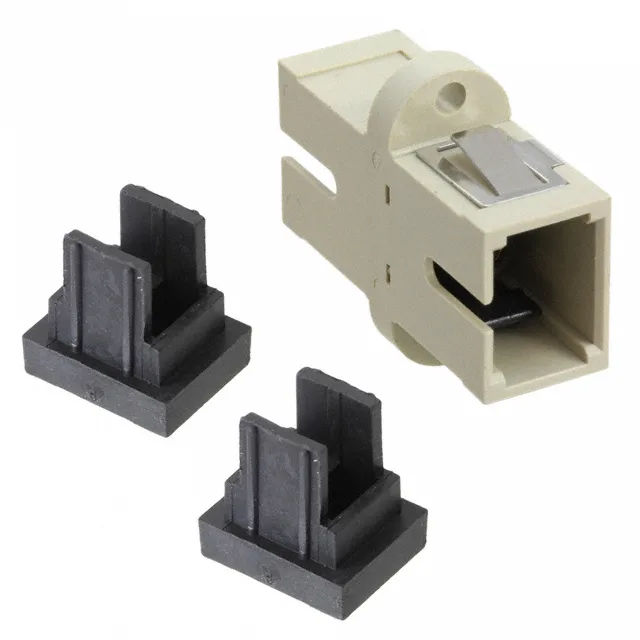

5504614-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5504614-1 SC Simplex Multimode Coupler, Panel Mount

MPN5504614-1
Active

TE Connectivity 5504614-1 SC simplex multimode coupler, panel mount with snap-in flange, metal ferrule, UL94 V-0 PBT housing, beige, includes dust cap.

$2.6300Ref. price · indicative, final on quote
5504614-1 datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5504614-1 Technical Specifications
ParameterValue
TypeCoupler
Mounting typePanel Mount, Flange; Snap-In
ColorBeige
Ferrule materialMetal
Housing materialPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
ModeMultimode
PackageBulk
FeaturesDust Cap
Simplex (Duplex)Simplex
Convert to (Adapter end)SC Receptacle
Convert from (Adapter end)SC Receptacle

Product details

The TE Connectivity 5504614-1 is a simplex SC-to-SC multimode coupler — a panel-mount adapter that joins two SC-terminated multimode fibers in a straight-through connection. It is the in-line junction for a patch panel or bulkhead, not a connector that terminates a cable. The beige housing signals multimode duty (the standard colour code for multimode SC hardware), and the metal ferrule keeps the alignment sleeve stable through repeated matings.

Mounting and installation

Mounts into a panel cutout via the flange and snap-in clips — no screws or nuts needed. The snap-in retention holds the coupler in place against the insertion and extraction force of an SC connector. The simplex format means one fiber channel per opening; if you need two fibers in the same cutout, you stack two of these side by side or use a duplex coupler.

Compatibility and real-world fit

Mates with any standard SC connector — male plug terminated on multimode patch cord or pigtail. The SC interface is keyed so the connector inserts only one way.

Frequently asked questions

Is 5504614-1 compatible with standard SC connectors?

Yes, the 5504614-1 mates with any standard SC connector terminated on multimode fiber. The SC Receptacle on both sides accepts the standard SC plug interface.

Is 5504614-1 compatible with single mode connectors?

A single-mode SC plug will physically insert, but the coupler is designed for multimode fiber. The alignment sleeve is sized for the larger multimode core, so single-mode insertion loss will be high — not recommended for a low-loss single-mode link.
