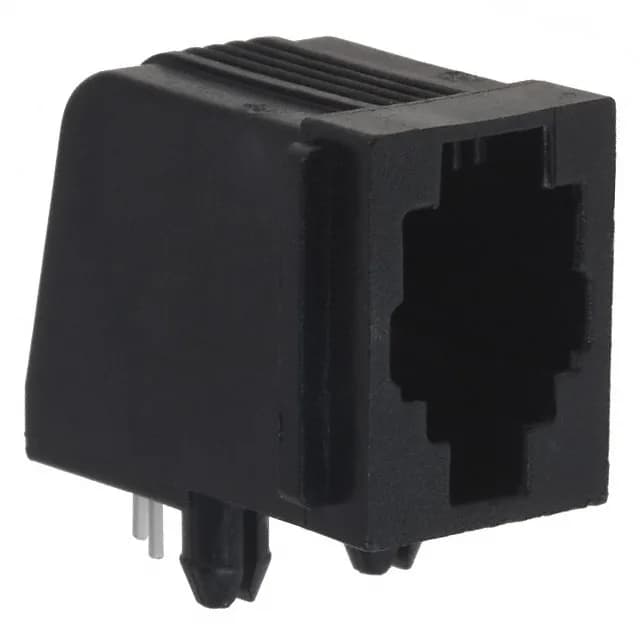

TE Connectivity 5520249-2 Modular Jack, 4P4C R/A, Cat3

MPN 5520249-2
Active

TE Connectivity modular jack, 5520249-2, 4P4C (RJ9/RJ10/RJ22), right-angle through-hole, unshielded, gold 50.0µin (1.27µm) contact finish, Cat3 rated, board lock and panel stops, tray package.

$2.1400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5520249-2 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyester
PackageTray
RatingsCat3
FeaturesBoard Lock, Panel Stops
ShieldingUnshielded
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)4p4c (RJ9, RJ10, RJ22)

Product details

The TE Connectivity 5520249-2 is a 4P4C modular jack — the 4-position, 4-conductor interface used on RJ9, RJ10, and RJ22 handset cords. It terminates to a PCB through a right-angle solder tail and mounts in a single through-hole row. Board locks and panel stops anchor the jack against the repeated plug insertion and cable strain typical in desk phones, base stations, and test equipment.

Why the Cat3 Rating Matters for Your Application

Cat3 performance limits the usable frequency to 16 MHz — fine for analog voice, 10BASE-T Ethernet, or ISDN, but not for 100BASE-TX or any Cat5e-or-higher data rate. For anything above 10 Mbps, you need a Cat5e or better modular jack with a different contact geometry and impedance control.

Board locks — two through-hole retention posts — resist the shear force from cable tugging and vibration during repeated mate cycles. Panel stops on the housing flange set the insertion depth so the jack face sits flush with the panel cutout. The tab points downward, which is the standard orientation for handset jacks on a vertical PCB.
