TE Connectivity AMP Connectors 552118-1 — D-Sub & D-Shaped Connectors

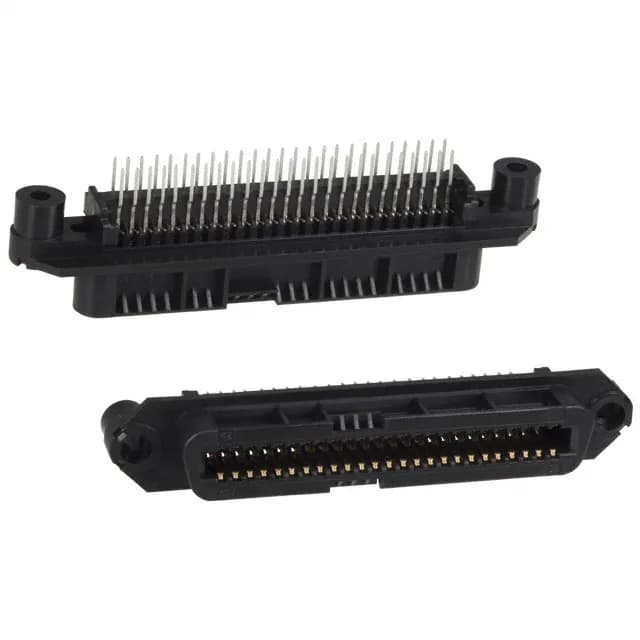

TE Connectivity 552118-1 CHAMP .085 Receptacle, 50 Pos

MPN552118-1
Obsolete

TE Connectivity CHAMP.085 series, Receptacle, 50 Positions, 2 Rows, Through Hole, Solder, Gold 30.0µin (0.76µm) Contact Finish, Board Side Flange, Tray.

$6.1592Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

552118-1 specifications
ParameterValue
SeriesCHAMP .085
MountingThrough Hole
Connector typeOuter Shroud Contacts
PackageTray
TerminationSolder
Contact finishGold
Flange featureBoard Side
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

CHAMP .085 Receptacle — 50-Position, Outer Shroud Contacts

This through-hole, solder-termination connector uses a board-side flange for secure mounting to the PCB.

The gold also resists corrosion in controlled indoor environments, though the CHAMP.085 series is not sealed for outdoor or washdown use.

Board Layout Fit: Through-Hole, 2-Row, 50 Positions

With 50 positions in 2 rows, this receptacle requires a through-hole footprint with a board-side flange for mechanical retention. The outer shroud contact arrangement means the mating plug's contacts wrap around the receptacle — verify the PCB keep-out zone for the shroud envelope, particularly if components sit close to the connector body. The CHAMP.085 pitch is 0.085 inch (2.16 mm) centerline, which is tighter than standard 0.100-inch headers but still routable on 2-layer boards with care.

Frequently asked questions

Where can I buy the 552118-1 and get a price?

The 552118-1 is obsolete and not stocked in standard distribution. It is sourced to order through independent distribution channels — submit an RFQ with your target quantity for current availability and pricing. No stock level or price is published for this discontinued part.

What is a direct replacement for the 552118-1?

No official direct replacement is listed in the available documentation. For a pin-compatible alternative, review the CHAMP.085 series for a similar 50-position, 2-row receptacle with outer shroud contacts — confirm the footprint, flange mounting, and contact finish match your board layout before substituting.
