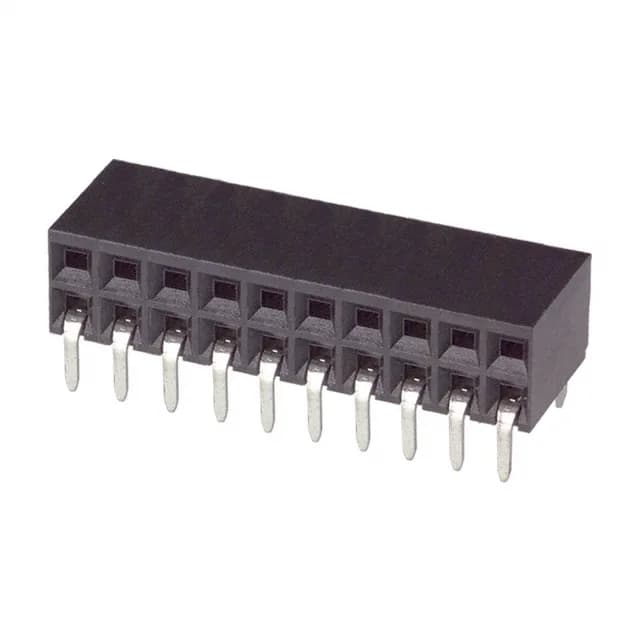

TE Connectivity AMPMODU Mod II receptacle, 20 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole right-angle, gold mating finish, 2 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
This is typical for internal board-to-board or wire-to-board connections where vibration is minimal and service access is frequent.
The through-hole, right-angle mounting requires the PCB to have drilled plated-through holes at 0.100" pitch in two rows, with a row spacing of 0.100" (2.54 mm). In a mezzanine stack, the mating header's post height must exceed this to ensure full contact wipe.
The 5535512-2 is a receptacle that mates with a 0.100" pitch, dual-row pin header. The header must have square pins (0.025" square typical for AMPMODU Mod II) and a post length sufficient to engage the full contact depth of the receptacle.
