Through-hole right-angle mounting, 50 circuits
The 5535512-7 is the 50-position dual-row receptacle in TE's AMPMODU Mod II series, terminated through-hole right-angle with solder tails at 0.115" (2.92 mm) length.

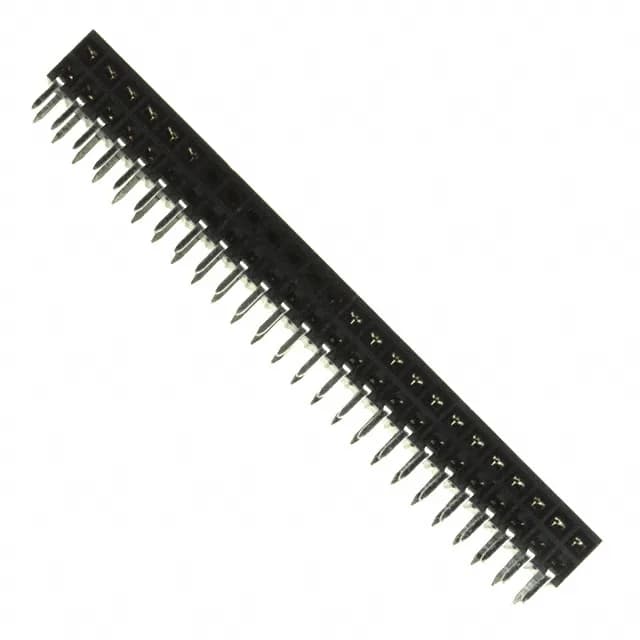

5535512-7 AMPMODU Mod II Receptacle, 50 Pos, 2.54mm
MPN5535512-7
Active
TE Connectivity AMPMODU Mod II receptacle, order code 5535512-7, 50 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$6.7851Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
