TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 5535676-4, 5 positions, single row, 0.100" (2.54mm) pitch, through-hole right-angle, solder termination, gold mating contacts, tin post finish.

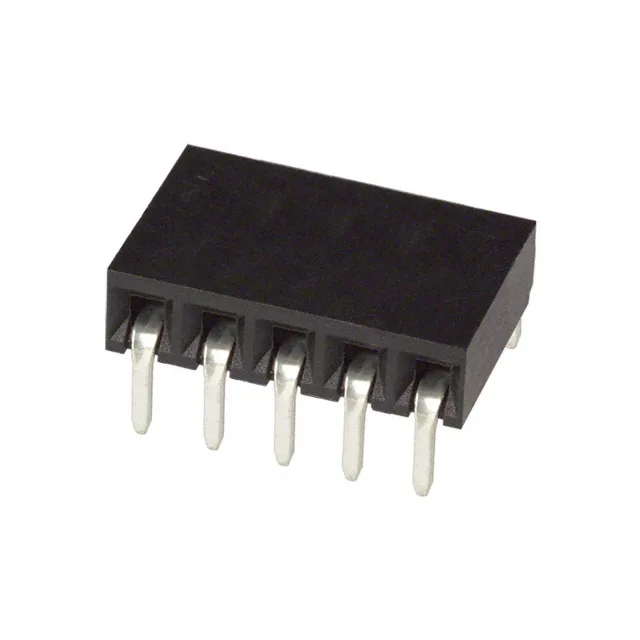

5535676-4 TE AMPMODU Mod II Receptacle, 5 Pos, 2.54mm
MPN5535676-4
Active
TE Connectivity AMP Connectors AMPMODU Mod II receptacle, order code 5535676-4, 5 positions, single row, 0.100" (2.54mm) pitch, through-hole right-angle, solder termination, gold mating contacts, tin post finish.
$0.8645Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.137\" (3.47mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Who supplies 5535676-4 and how is it quoted for volume?
TE Connectivity AMP Connectors manufactures the 5535676-4.
