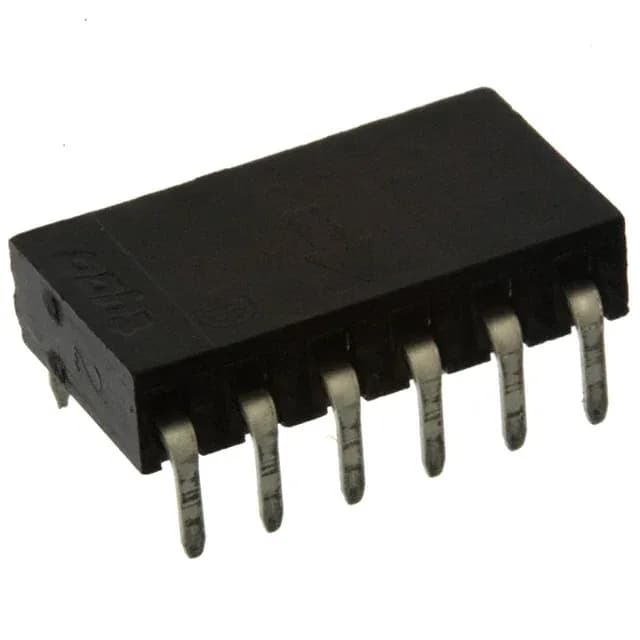

TE Connectivity AMPMODU Mod II, 6-position single-row receptacle, 0.100" (2.54 mm) pitch, right-angle through-hole, 30 µinch gold mating finish, -55°C to 125°C operating range.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.137\" (3.47mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The glass-filled polyester housing holds dimensional stability across that span, and the phosphor bronze contacts maintain spring force at the high end.
The mating header should have a square pin profile and gold mating finish to match the 30 µinch gold interface on this receptacle.
