Board-to-board receptacle, 40 circuits
The 5536254-1 is the 40-circuit receptacle in TE Connectivity's Micro-Strip series, a board-to-board interconnect with a 0.050" (1.27mm) mating pitch and dual-row layout.
TE 5536254-1 Micro-Strip Receptacle, 40 Pos, Obsolete
MPN5536254-1
Obsolete

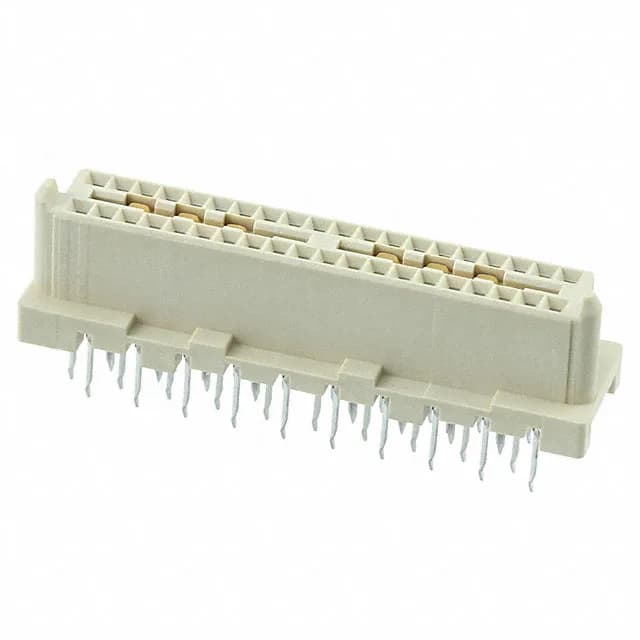

TE Connectivity AMP Connectors Micro-Strip receptacle, order code 5536254-1, 40 positions, dual row, 0.050" (1.27mm) pitch, 30VAC, gold-plated mating contacts, through-hole, solder termination.
$1.0700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Strip |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 30VAC |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Natural |
| Insulation height | 0.320\" (8.13mm) |
| Insulation material | Thermoplastic |
| Mated stacking heights | 10.92mm, 17.78mm, 18.75mm |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Features | Board Guide, Ground Bus (Plane) |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
