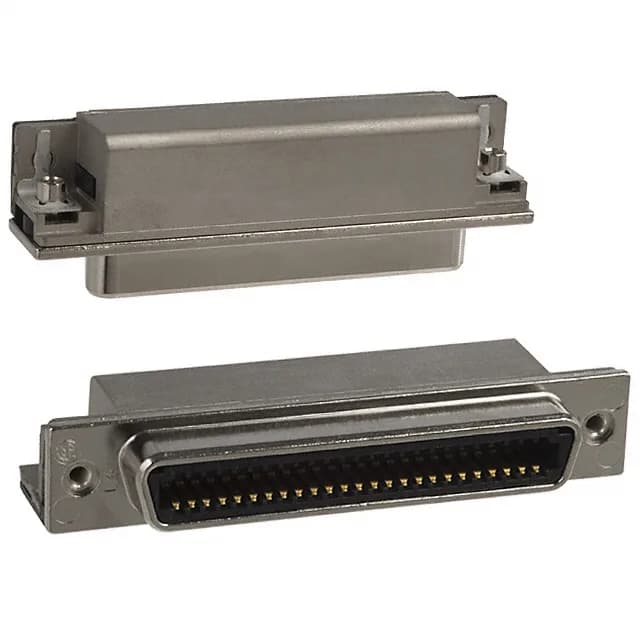

TE Connectivity CHAMP.085 receptacle, 50 positions, 2 rows, panel mount through-hole right-angle, solder termination, gold 30.0µin contact finish, shielded with board locks.
| Parameter | Value |
|---|---|
| Series | CHAMP .085 |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Outer Shroud Contacts |
| Package | Tray |
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 50 |
| Contact finish thickness | 30.0µin (0.76µm) |
Built-in board locks and a shielded shell add mechanical retention during soldering and reduce EMI ingress at the connector-to-panel interface. The tray packaging suits hand-loading or pick-and-place for low-to-medium volume assembly.
This receptacle mounts through a panel cutout using the 4-40 threaded flange holes, then solders into the PCB via through-hole pins.
The 5557932-2 is obsolete from TE Connectivity, but it can be sourced to order through independent distribution. Submit an RFQ for current availability and pricing — no stock or lead-time figure is published here.
For a substitute, search the CHAMP.085 series for a 50-position, 2-row, right-angle receptacle with gold plating and board locks.
