TE Connectivity AMP Connectors 5558344-1

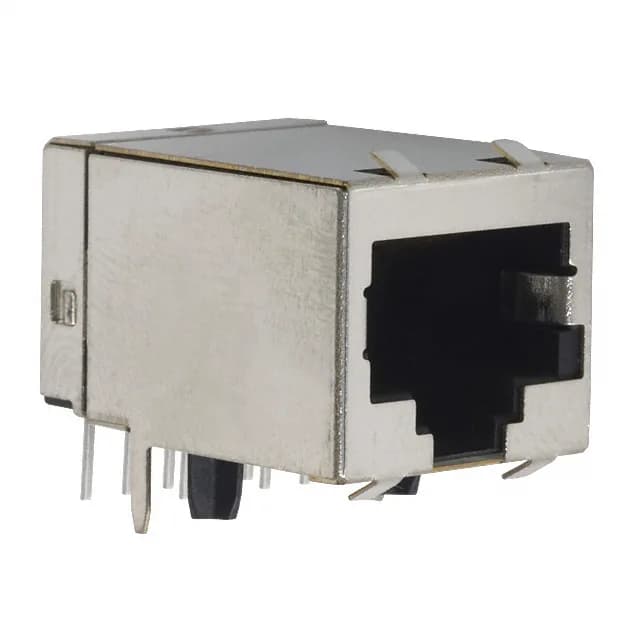

TE 5558344-1 RJ45 Jack, 8P8C, R/A Shielded, Gold

MPN 5558344-1
Active

TE Connectivity modular jack, 8p8c (RJ45, Ethernet), right-angle, shielded, EMI finger, through-hole solder, gold 50.0µin contacts, tray.

$5.2700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5558344-1 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon
PackageTray
RatingsCat5
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

The EMI finger on the shield bleeds chassis noise before it couples into the signal pairs — a detail that matters when the jack sits near a switching supply or a display interface.

Rated Cat5, this jack supports 100 MHz signaling — enough for 100BASE-TX and 1000BASE-T in a controlled industrial environment. The shielded body with integrated EMI finger mates with a shielded RJ45 plug to complete the ground path around the twisted-pair cable. Without that shield continuity, the common-mode rejection of the differential pair drops and the link margin erodes in a noisy plant-floor run.

Right-angle orientation means the jack sits parallel to the PCB, plugging from the board edge. The through-hole solder tails anchor into plated through-holes — no reflow-profile sensitivity like an SMT shield.
