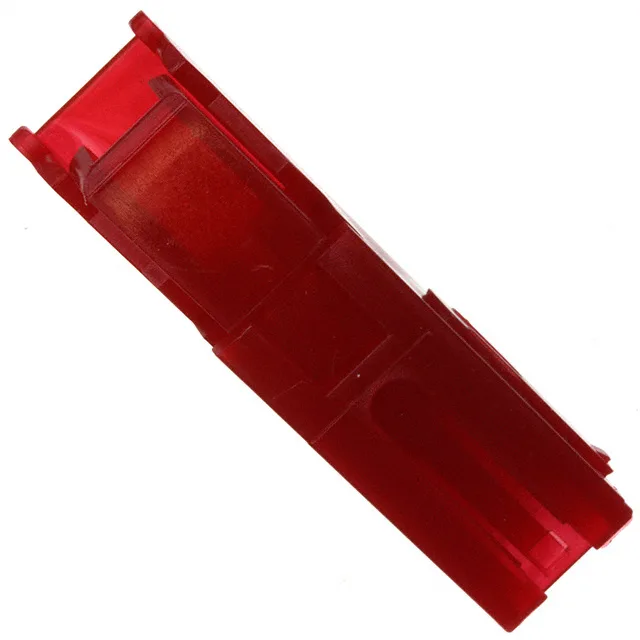

556137-4 — TE Connectivity AMP Connectors product photo

TE Connectivity 556137-4 AMPINNERGY 1-Pos Red Housing

MPN556137-4
Active

TE Connectivity AMPINNERGY 556137-4, 1-position non-gendered connector housing, red polycarbonate, free-hanging in-line, locking ramp fastening, stackable, crimp termination, 0°C to 105°C operating range.

$1.7700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

556137-4 Technical Specifications
ParameterValue
SeriesAMPINNERGY
GenderNon-Gendered
Mounting typeFree Hanging (In-Line)
Connector typeNon-Gendered
Fastening typeLocking Ramp
Operating temperature0°C ~ 105°C
ColorRed
Material - insulationPolycarbonate (PC)
NoteContacts Not Included
PackageBulk
FeaturesStackable
Rows1
Contact terminationCrimp
Positions1

Product details

The TE Connectivity 556137-4 is a 1-position, non-gendered connector housing from the AMPINNERGY series. The locking ramp on each housing provides a positive mechanical latch when mated with an identical unit, which is the point of the non-gendered design: any two 556137-4 housings mate together, no need to track male vs female halves. The red polycarbonate (PC) insulation handles 0°C to 105°C, so it's suited for indoor industrial equipment, power distribution panels, and battery interconnect harnesses where you need a simple, keyed single-wire connection.

Stackable — Gangs Into Multi-Way Assemblies

Each 556137-4 is a standalone 1-position housing, but the series is designed stackable. That means you can snap multiple units side-by-side to build a multi-way connector block without a custom overmold. For a harness builder, this is the practical alternative to a fixed multi-position housing when the circuit count isn't known until the wire run is laid out. The locking ramp on each position still engages individually, so the stack holds together mechanically.

Termination is crimp, so a standard crimp tool for the series is required.

Frequently asked questions

Where can I buy the 556137-4 and how do I get a price?

No stock or price figure is published here.

Does the 556137-4 come with contacts?

No — the spec explicitly notes 'Contacts Not Included'. You must order the matching AMPINNERGY crimp terminals separately for your wire gauge.
